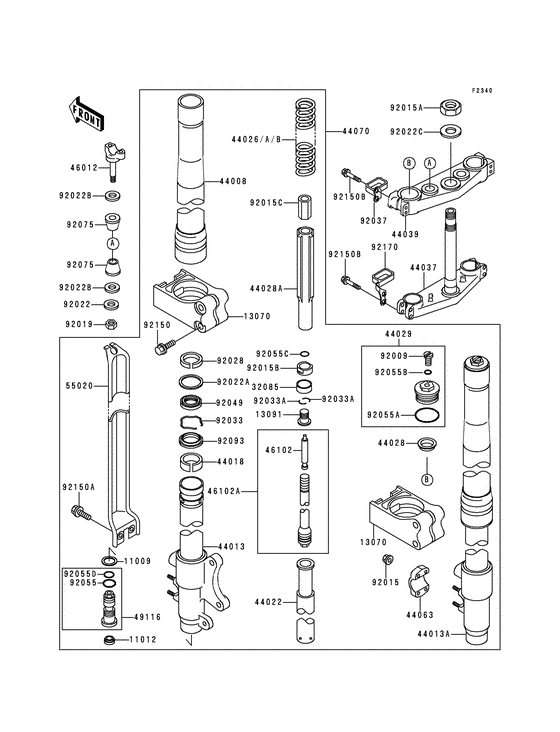

Front fork (Kx500-e4/e5) Diagram Kawasaki KX500
- Year
- 1993
- Model code
- KX500-E5
- Sales region
- USA
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1791 GASKET |
11009-1791 |
US $4.44 |
||
|
11012
|
11012
11012-1692 CAP |
11012-1692 |
from US $4.59 |
||
|
13070
|
13070
13070-1204
GUIDE,LH
Guide,protector; |
13070-1204 |
— | ||
|
13091
|
13091
13091-1651 HOLDER |
13091-1651 |
from US $20.50 |
||
|
32085
|
32085
32085-1323 STOPPER |
32085-1323 |
from US $13.62 |
||
|
44008
|
44008
44008-1012 PIPE-FORK OUTER |
44008-1012 |
US $850.10 |
||
|
44013
|
44013
44013-1340
PIPE-FORK INNER,LH
Pipe-fork inner,lh; |
44013-1340 |
— | ||
|
44013A
|
44013A
44013-1341
PIPE-FORK INNER,RH
Pipe-fork inner,rh; |
44013-1341 |
— | ||
|
44018
|
44018
44018-1056 PISTON-FORK,INNER PIPPiston-fork,inner pipe; |
44018-1056 |
from US $21.09 |
||
|
44022
|
44022
44022-1264
CYLINDER-FORK
|
44022-1264 |
— | ||
|
44026
|
44026
44026-1486 SPRING-FRONT FORKSpring-front fork,k=0.39; |
44026-1486 |
from US $76.39 |
||
|
44026A
|
44026A
44026-1489
SPRING-FRONT FORK
Spring-front fork,k=0.38; (option) |
44026-1489 |
— | ||
| replacement | |||||
|
44026A
|
44026A
44026-1493
SPRING-FRONT FORK
Spring-front fork,k=0.38; (option) |
44026-1493 |
— | ||
|
44026B
|
44026B
44026-1491 SPRING-FRONT FORKSpring-front fork,k=0.40; (option) |
44026-1491 |
from US $76.39 |
||
|
44028
|
44028
44028-1081 GUIDE-FORK SPRING |
44028-1081 |
from US $8.87 |
||
|
44028A
|
44028A
44028-1087 GUIDE-FORK SPRING |
44028-1087 |
US $57.91 |
||
|
44029
|
44029
44029-1148
SEAT-FORK SPRING
|
44029-1148 |
— | ||
|
44037
|
44037
44037-1280
Holder-fork under
|
44037-1280 |
— | ||
|
44039
|
44039
44039-1212 HOLDER-FORK UPPER |
44039-1212 |
from US $238.77 |
||
|
44063
|
44063
44063-1056 HOLDER-FRONT AXLE |
44063-1056 |
from US $37.85 |
||
|
44070
|
44070
44070-5129 DAMPER-ASSYDamper-assy,fork; |
44070-5129 |
US $2,113.11 |
||
|
46012
|
46012
46012-1192 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1192 |
US $33.36 |
||
|
46102
|
46102
46102-1303
ROD,FORK
Rod,fork; |
46102-1303 |
— | ||
|
46102A
|
46102A
46102-1307
ROD,FORK
Rod,fork; |
46102-1307 |
— | ||
|
49116
|
49116
49116-1093
VALVE-ASSY,FORK
Valve-assy,fork; |
49116-1093 |
— | ||
|
55020
|
55020
55020-1384
GUARD,FORK
Guard,fork; |
55020-1384 |
— | ||
|
92009
|
92009
92009-1568 SCREW |
92009-1568 |
from US $3.96 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut,flanged,6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1653
NUT,STEERING STEM,22M
Nut,steering stem,22mm; |
92015-1653 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92210-1521 NUT,STEERING STEM,22MNut,steering stem,22mm; |
92210-1521 |
from US $10.30 |
||
|
92015B
|
92015B
92015-1805 NUT |
92015-1805 |
from US $15.36 |
||
|
92015C
|
92015C
92015-1872 NUT |
92015-1872 |
from US $18.37 |
||
|
92019
|
92019
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92019
|
92019
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92019
|
92019
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2Washer,10.2x28x2; |
92022-1088 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1299 WASHER |
92022-1299 |
from US $5.39 |
||
|
92022B
|
92022B
92022-1737 WASHER |
92022-1737 |
from US $3.17 |
||
|
92022C
|
92022C
92022-1873 WASHERWasher,steering stem; |
92022-1873 |
from US $4.75 |
||
|
92028
|
92028
92028-1581 BUSHING |
92028-1581 |
from US $16.16 |
||
|
92033
|
92033
92033-1077 RING-SNAP |
92033-1077 |
from US $3.01 |
||
|
92033A
|
92033A
92033-1271 RING-SNAP |
92033-1271 |
US $3.96 |
||
|
92037
|
92037
92037-1627 Clamp |
92037-1627 |
from US $16.63 |
||
|
92049
|
92049
92049-1373 SEAL-OIL |
92049-1373 |
from US $21.24 |
||
|
92055
|
92055
92055-1062 O RING,22MMRing-o,fork; |
92055-1062 |
US $3.60 |
||
| replacement | |||||
|
92055
|
92055
670B2022 O RING,22MMRing-o,fork; |
670B2022 |
from US $2.85 |
||
|
92055A
|
92055A
92055-1333 ORING,REAR SHOCKRing-o,fork,air tube; |
92055-1333 |
from US $2.85 |
||
|
92055B
|
92055B
92055-1441 O RING,3MM |
92055-1441 |
US $2.85 |
||
| replacement | |||||
|
92055B
|
92055B
670B1503 O RING,3MM |
670B1503 |
from US $2.85 |
||
|
92055C
|
92055C
92055-1442 RING-O |
92055-1442 |
from US $5.54 |
||
|
92055D
|
92055D
92055-1513 RING-ORing-o,fork valve; |
92055-1513 |
US $2.30 |
||
| replacement | |||||
|
92055D
|
92055D
92055-1462
RING-O
Ring-o,fork valve; |
92055-1462 |
— | ||
|
92075
|
92075
92075-1776 DAMPER |
92075-1776 |
from US $4.75 |
||
|
92093
|
92093
92093-1315 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1315 |
US $16.36 |
||
| replacement | |||||
|
92093
|
92093
92093-1342 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1342 |
from US $14.10 |
||
|
92150
|
92150
92150-1270 BOLT,5X35Bolt,5x35; |
92150-1270 |
from US $3.64 |
||
|
92150A
|
92150A
92150-1340
BOLT,6X14
Bolt,6x14; |
92150-1340 |
— | ||
| replacement | |||||
|
92150A
|
92150A
92150-1505 BoltBolt,6x14; |
92150-1505 |
from US $3.01 |
||
|
92150B
|
92150B
92150-1516 BOLT,FLANGED,8X40Bolt,flanged,8x40; |
92150-1516 |
from US $9.66 |
||
|
92170
|
92170
92170-1088 Clamp |
92170-1088 |
from US $16.63 |
||
