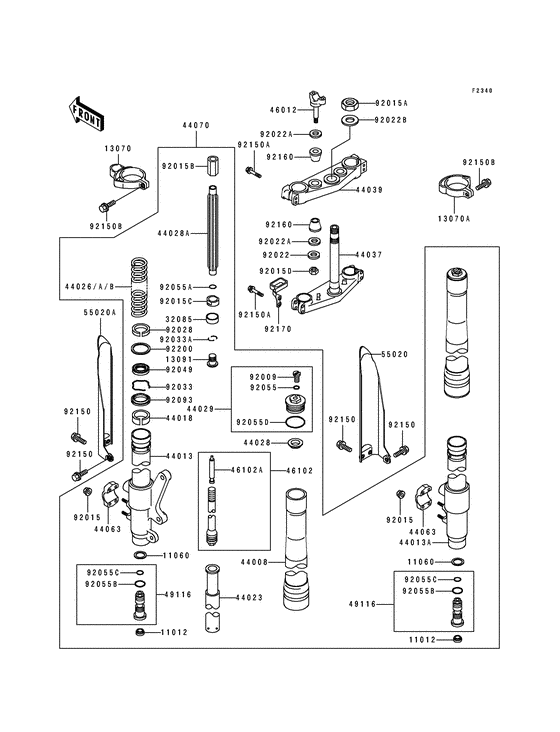

Front fork Diagram Kawasaki KX500
- Year
- 1997
- Model code
- KX500-E9
- Sales region
- USA
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1692 CAP |
11012-1692 |
from US $4.59 |
||
|
11060
|
11060
11060-1707 GASKET |
11060-1707 |
from US $3.80 |
||
|
13070
|
13070
13070-1289-RZ GUIDE,PROTECTOR,LH,WHGuide,protector,lh,white; |
13070-1289-RZ |
from US $13.97 |
||
| replacement | |||||
|
13070
|
13070
13070-1329-RZ GUIDE,PROTECTOR,LH,WHGuide,protector,lh,white; |
13070-1329-RZ |
from US $16.16 |
||
|
13070A
|
13070A
13070-1290-RZ GUIDE,PROTECTOR,RH,WHGuide,protector,rh,white; |
13070-1290-RZ |
from US $21.09 |
||
|
13091
|
13091
13091-1651 HOLDER |
13091-1651 |
from US $20.50 |
||
|
32085
|
32085
32085-1323 STOPPER |
32085-1323 |
from US $13.62 |
||
|
44008
|
44008
44008-1037-14 PIPE-FORK OUTER,A.N.GPipe-fork outer,a.n.gold; |
44008-1037-14 |
from US $829.09 |
||
|
44013
|
44013
44013-1413 PIPE-FORK INNER,LHPipe-fork inner,lh; |
44013-1413 |
from US $487.55 |
||
|
44013A
|
44013A
44013-1414 PIPE-FORK INNER,RHPipe-fork inner,rh; |
44013-1414 |
from US $487.55 |
||
|
44018
|
44018
44018-1059 PISTON-FORK,INNER PIPPiston-fork,inner pipe; |
44018-1059 |
US $22.44 |
||
|
44023
|
44023
44023-1114 CYLINDER-COMP-FORK |
44023-1114 |
US $296.96 |
||
|
44026
|
44026
44026-1620 SPRING-FRONT FORK,K=Spring-front fork,k=0.4; |
44026-1620 |
from US $83.48 |
||
|
44026A
|
44026A
44026-1623 SPRING-FRONT FORK,K=Spring-front fork,k=0.39; (option) |
44026-1623 |
from US $84.97 |
||
|
44026B
|
44026B
44026-1624 SPRING-FRONT FORK,K=Spring-front fork,k=0.41; (option) |
44026-1624 |
from US $83.48 |
||
|
44028
|
44028
44028-1097 GUIDE-FORK SPRING |
44028-1097 |
from US $11.25 |
||
|
44028A
|
44028A
44028-1100 GUIDE-FORK SPRING |
44028-1100 |
from US $45.33 |
||
|
44029
|
44029
44029-1159 SEAT-FORK SPRING |
44029-1159 |
US $109.36 |
||
|
44037
|
44037
44037-1354 Holder-fork under |
44037-1354 |
US $781.72 |
||
|
44039
|
44039
44039-1269 HOLDER-FORK UPPER |
44039-1269 |
US $258.93 |
||
| replacement | |||||
|
44039
|
44039
44039-1295
HOLDER-FORK UPPER
|
44039-1295 |
— | ||
|
44063
|
44063
44063-1060
HOLDER-FRONT AXLE
|
44063-1060 |
— | ||
|
44070
|
44070
44070-1551-14 DAMPER-ASSY,FORK,A.N.Damper-assy,fork,a.n.gold; |
44070-1551-14 |
US $2,527.87 |
||
|
46012
|
46012
46012-1264 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1264 |
from US $33.21 |
||
|
46102
|
46102
46102-1401 ROD,FORK,ASSYRod,fork,assy; |
46102-1401 |
from US $550.54 |
||
|
46102A
|
46102A
46102-1403
ROD,FORK,INNER
Rod,fork,inner; |
46102-1403 |
— | ||
|
49116
|
49116
49116-1150 VALVE-ASSY,FORKValve-assy,fork; |
49116-1150 |
from US $170.02 |
||
|
55020
|
55020
55020-1493-RZ GUARD,FORK,RH,WHITEGuard,fork,rh,white; |
55020-1493-RZ |
from US $45.03 |
||
|
55020A
|
55020A
55020-1554-RZ GUARD,FORK,LH,WHITEGuard,fork,lh,white; |
55020-1554-RZ |
from US $45.03 |
||
|
92009
|
92009
92009-1568 SCREW |
92009-1568 |
from US $3.96 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut,flanged,6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1653
NUT,STEERING STEM,22M
Nut,steering stem,22mm; |
92015-1653 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92210-1521 NUT,STEERING STEM,22MNut,steering stem,22mm; |
92210-1521 |
from US $10.30 |
||
|
92015B
|
92015B
92015-1872 NUT |
92015-1872 |
from US $18.37 |
||
|
92015C
|
92015C
92015-1945 NUT |
92015-1945 |
from US $7.44 |
||
|
92015D
|
92015D
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
| replacement | |||||
|
92015D
|
92015D
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2Washer,10.2x28x2; |
92022-1088 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1737 WASHER |
92022-1737 |
from US $3.17 |
||
|
92022B
|
92022B
92022-1873 WASHERWasher,steering stem; |
92022-1873 |
from US $4.75 |
||
|
92028
|
92028
92028-1755 BUSHING |
92028-1755 |
from US $17.58 |
||
|
92033
|
92033
92033-1264 RING-SNAP |
92033-1264 |
from US $3.80 |
||
|
92033A
|
92033A
92033-1271 RING-SNAP |
92033-1271 |
US $3.96 |
||
|
92049
|
92049
92049-1440 SEAL-OIL,FORK OUTER TSeal-oil,fork outer tube; |
92049-1440 |
from US $20.79 |
||
|
92055
|
92055
92055-1441 O RING,3MM |
92055-1441 |
US $2.85 |
||
| replacement | |||||
|
92055
|
92055
670B1503 O RING,3MM |
670B1503 |
from US $2.85 |
||
|
92055A
|
92055A
92055-1442 RING-O |
92055-1442 |
from US $5.54 |
||
|
92055B
|
92055B
92055-1547 RING-O,FORK VALVERing-o,fork valve; |
92055-1547 |
from US $3.33 |
||
|
92055C
|
92055C
92055-1548 RING-O,FORK VALVERing-o,fork valve; |
92055-1548 |
from US $2.69 |
||
|
92055D
|
92055D
92055-1549 RING-O |
92055-1549 |
from US $6.34 |
||
|
92093
|
92093
92093-1392 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1392 |
from US $15.68 |
||
|
92150
|
92150
92150-1435 BoltBolt,6x12; |
92150-1435 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1516 BOLT,FLANGED,8X40Bolt,flanged,8x40; |
92150-1516 |
from US $9.66 |
||
|
92150B
|
92150B
92150-1802 BOLT,5X16Bolt,5x16; |
92150-1802 |
from US $3.01 |
||
|
92160
|
92160
92160-1544 DAMPER,HANDLE HOLDERDamper,handle holder; |
92160-1544 |
from US $3.48 |
||
|
92170
|
92170
92170-1604 Clamp,HoseClamp,hose; |
92170-1604 |
from US $17.42 |
||
|
92200
|
92200
92200-1006 WASHER |
92200-1006 |
from US $7.76 |
||
