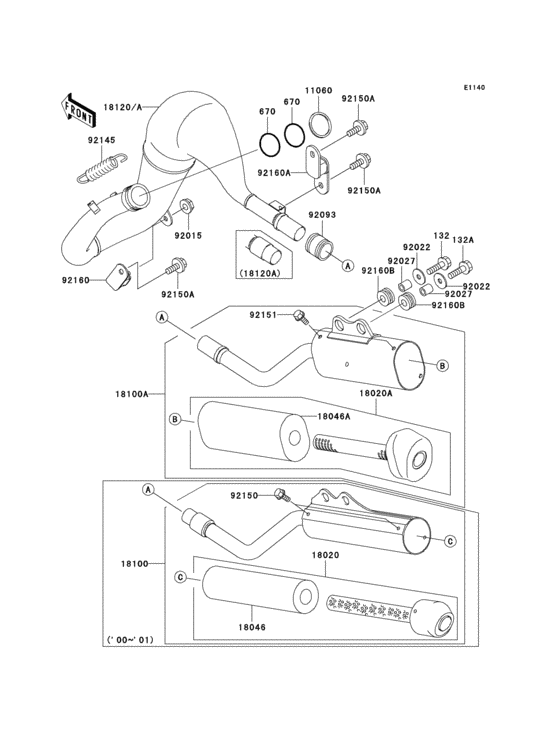

Muffler(s) Diagram Kawasaki KX65
- Year
- 2001
- Colour
- Lime Green (7F)
- Model code
- KX65-A2
- Sales region
- Australia
- Engine Capacity
- 65
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 Bolt |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
132A
|
132A
132G0635
BOLT-FLANGED-SMALL,6X
|
132G0635 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0635 BOLT-FLANGED-SMALL,6X35 |
132BA0635 |
from US $1.25 |
||
|
670
|
670
670E3032 0 RING,32MM |
670E3032 |
from US $9.56 |
||
|
11060
|
11060
11060-1922 GASKET,EXHAUST |
11060-1922 |
from US $7.92 |
||
|
18020
|
18020
18020-1264 BAFFLE |
18020-1264 |
from US $121.18 |
||
|
18046
|
18046
18046-1518 WOOL |
18046-1518 |
from US $62.38 |
||
|
18100
|
18100
18100-1080 BODY-ASSY-MUFFLER |
18100-1080 |
from US $172.80 |
||
|
18120
|
18120
18120-1089 CHAMBER-EXHAUST |
18120-1089 |
from US $272.39 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
|
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-237 WASHER 6.5X22X1.6T |
92022-237 |
from US $3.20 |
||
|
92027
|
92027
92027-1210 COLLAR,6.8X10X11.5L |
92027-1210 |
from US $6.81 |
||
|
92093
|
92093
92093-1511 SEAL |
92093-1511 |
from US $11.56 |
||
|
92145
|
92145
92145-1340
SPRING,EXHAUST CONNEC
|
92145-1340 |
— | ||
| replacement | |||||
|
92145
|
92145
92145-2327 SPRING,EXHAUST CONNEC |
92145-2327 |
from US $10.27 |
||
|
92150
|
92150
92150-1406 Bolt |
92150-1406 |
from US $2.38 |
||
|
92150A
|
92150A
92150-1435 Bolt |
92150-1435 |
from US $2.69 |
||
|
92160
|
92160
92160-1176 DAMPER,MUFFLER,FR |
92160-1176 |
from US $21.07 |
||
|
92160A
|
92160A
92160-1201 DAMPER,MUFFLER,RR |
92160-1201 |
from US $17.42 |
||
|
92160B
|
92160B
92160-1913 DAMPER,MUFFLER FITTIN |
92160-1913 |
from US $1.96 |
||
