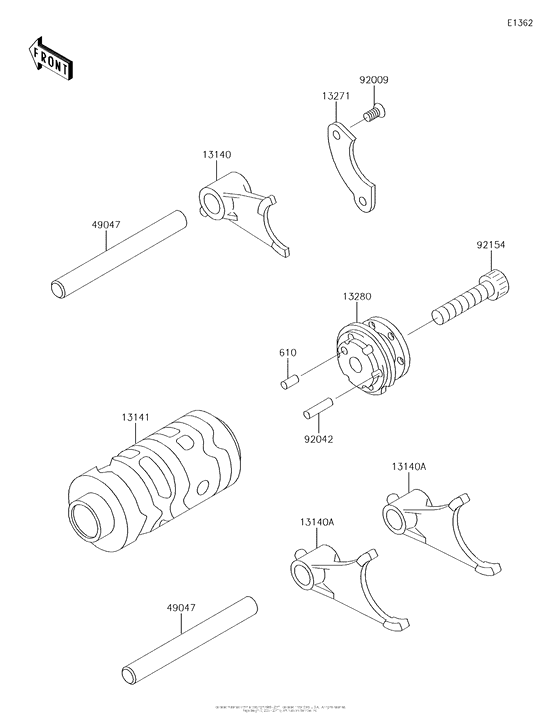

Gear Change Drum/shift Fork(S) Diagram Kawasaki KX65
- Year
- 2015
- Model code
- KX65AFF
- Sales region
- USA
- Engine Capacity
- 65
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
610
|
610
610A0408 PIN DOWEL 4X8 |
610A0408 |
from US $1.07 |
||
|
13140
|
13140
13140-1300 FORK-SHIFT,INPUT |
13140-1300 |
from US $58.04 |
||
|
13140A
|
13140A
13140-1301 FORK-SHIFT,OUTPUT |
13140-1301 |
from US $58.04 |
||
|
13141
|
13141
13141-1220 DRUM-CHANGE |
13141-1220 |
from US $80.63 |
||
|
13271
|
13271
13271-1417 PLATE |
13271-1417 |
from US $6.18 |
||
|
13280
|
13280
13280-1179 HOLDER |
13280-1179 |
from US $39.64 |
||
|
49047
|
49047
49047-1009 ROD,SHIFT,10X90 |
49047-1009 |
from US $11.72 |
||
|
92009
|
92009
92009-1862 SCREW,6X14 |
92009-1862 |
from US $1.11 |
||
|
92042
|
92042
92042-014 PIN GEAR CHANGE DRUM |
92042-014 |
from US $0.75 |
||
|
92154
|
92154
92154-0502 BOLT,SOCKET,8X30 |
92154-0502 |
from US $1.74 |
