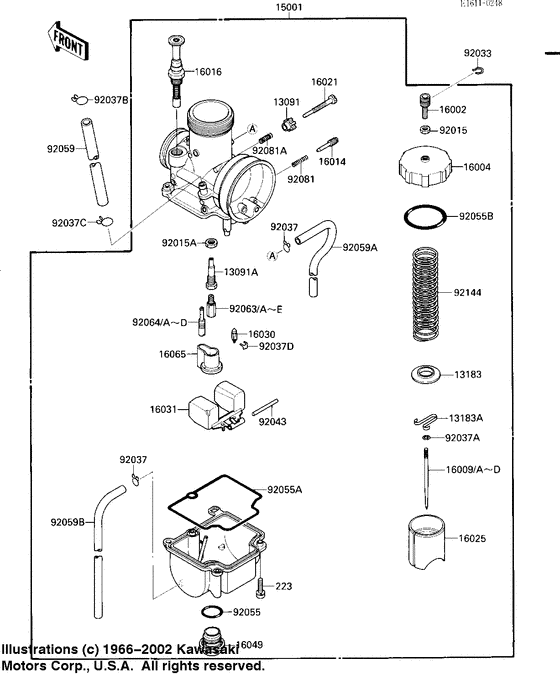

Carburetor Diagram Kawasaki KX80 KX80
- Year
- 1979
- Model code
- KX80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13091
|
13091
13091-1492
HOLDER,STOP SCREW
Holder,stop screw; |
13091-1492 |
— | ||
|
13091A
|
13091A
13091-1552 HOLDER,NEEDLE JETHolder,needle jet; |
13091-1552 |
from US $21.92 |
||
|
13183
|
13183
13183-1162 PLATE |
13183-1162 |
from US $8.40 |
||
|
13183A
|
13183A
13183-1250 PLATE,THROTTLEPlate,throttle; |
13183-1250 |
US $12.51 |
||
|
15001
|
15001
15001-1441 CARBURETOR-ASSY |
15001-1441 |
from US $250.99 |
||
|
16002
|
16002
16002-1056 ADJUSTER-CABLE |
16002-1056 |
from US $16.79 |
||
|
16004
|
16004
16004-1059 CAP-CHAMBER,MIXINGCap-chamber,mixing; |
16004-1059 |
from US $27.38 |
||
|
16009
|
16009
16009-1393 NEEDLE-JET,F3045FNeedle-jet,f3045f; |
16009-1393 |
from US $23.72 |
||
|
16009A
|
16009A
16009-1380 NEEDLE-JETNeedle-jet,f3043h; (option) |
16009-1380 |
US $21.31 |
||
|
16009B
|
16009B
16009-1381 NEEDLE-JET,F3044HNeedle-jet,f3044h; (option) |
16009-1381 |
US $21.31 |
||
|
16009C
|
16009C
16009-1382 NEEDLE-JETNeedle-jet,f3046h; (option) |
16009-1382 |
US $21.26 |
||
|
16009D
|
16009D
16009-1389 NEEDLE-JETNeedle-jet,f3047h; (option) |
16009-1389 |
US $24.48 |
||
|
16014
|
16014
16014-1033 SCREW-PILOT AIR |
16014-1033 |
from US $14.26 |
||
|
16016
|
16016
16016-1028 PLUNGER,STARTERPlunger,starter; |
16016-1028 |
from US $70.31 |
||
|
16021
|
16021
16021-1121
SCREW-THROTTLE STOP
|
16021-1121 |
— | ||
|
16025
|
16025
16025-1147 VALVE-THROTTLE,CA 5.0Valve-throttle,ca5.0; |
16025-1147 |
from US $141.08 |
||
|
16030
|
16030
16030-1064 VALVE-FLOAT |
16030-1064 |
from US $34.26 |
||
|
16031
|
16031
16031-1065 FLOAT |
16031-1065 |
from US $36.20 |
||
|
16049
|
16049
16049-1051 COVER-MAIN JET |
16049-1051 |
from US $21.39 |
||
|
16065
|
16065
16065-1162 HOLDER-CARBURETOR |
16065-1162 |
from US $6.97 |
||
|
92015
|
92015
92015-1574 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
92015-1574 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1674 NUT |
92015-1674 |
from US $5.70 |
||
|
92033
|
92033
92036-018 CIRCLIP |
92036-018 |
from US $2.53 |
||
|
92037
|
92037
92037-1396 CLAMP,TUBEClamp,tube; |
92037-1396 |
from US $3.33 |
||
|
92037A
|
92037A
92037-1401 CLAMP,JET NEEDLEClamp,jet needle; |
92037-1401 |
from US $2.85 |
||
|
92037B
|
92037B
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92037C
|
92037C
92037-1712 CLAMP |
92037-1712 |
from US $3.90 |
||
|
92037D
|
92037D
92037-1991
SPRING,FLOAT
Clamp,float; |
92037-1991 |
— | ||
| replacement | |||||
|
92037D
|
92037D
92144-1178 SPRING,FLOATClamp,float; |
92144-1178 |
from US $5.23 |
||
|
92043
|
92043
92043-1207
PIN,FLOAT
Pin,float; |
92043-1207 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-1148 PIN,FLOATPin,float; |
92043-1148 |
from US $4.20 |
||
|
92055
|
92055
92055-1167 RING-O,MAIN JET COVERRing-o,main jet cover; |
92055-1167 |
from US $7.27 |
||
|
92055A
|
92055A
92055-1389 RING-O,FLOAT CHAMBERRing-o,float chamber; |
92055-1389 |
from US $7.62 |
||
|
92055B
|
92055B
92055-1390 RING-O,CHAMBER TOPRing-o,chamber top; |
92055-1390 |
from US $4.75 |
||
|
92059
|
92059
92059-1665
TUBE,5.3X10.5X200
Tube,5.3x10.5x200; |
92059-1665 |
— | ||
|
92059A
|
92059A
92059-1844 TUBE,4X7X300Tube,4x7x300; |
92059-1844 |
from US $9.35 |
||
|
92059B
|
92059B
92059-1845 TUBE,4X7X240Tube,4x7x240; |
92059-1845 |
US $4.82 |
||
|
92063
|
92063
92063-1364 JET-MAIN,#150Jet-main,#150; (option) |
92063-1364 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1365 JET-MAINJet-main,#152; (option) |
92063-1365 |
from US $10.30 |
||
|
92063B
|
92063B
92063-1366 JET-MAIN,#155Jet-main,#155; |
92063-1366 |
from US $11.87 |
||
|
92063C
|
92063C
92063-1367 JET-MAIN,#158Jet-main,#158; (option) |
92063-1367 |
from US $9.82 |
||
|
92063D
|
92063D
92063-1368 JET-MAIN,#160Jet-main,#160; (option) |
92063-1368 |
from US $9.82 |
||
|
92063E
|
92063E
92063-1374 JET-MAINJet-main,#175; (option) |
92063-1374 |
from US $9.82 |
||
|
92064
|
92064
92064-1145 JET-PILOT,#55Jet-pilot,#55; (option) |
92064-1145 |
from US $11.88 |
||
|
92064A
|
92064A
92064-1146 JET-PILOTJet-pilot,#58; |
92064-1146 |
from US $13.15 |
||
|
92064B
|
92064B
92064-1147 JET-PILOTJet-pilot,#60; (option) |
92064-1147 |
from US $13.15 |
||
|
92064C
|
92064C
92064-1148 JET-PILOTJet-pilot,#62; (option) |
92064-1148 |
from US $13.15 |
||
|
92064D
|
92064D
92064-1149 JET-PILOT,#65Jet-pilot,#65; (option) |
92064-1149 |
from US $12.47 |
||
|
92081
|
92081
92081-1555 SPRING,ADJUST SCREWSpring,adjust screw; |
92081-1555 |
from US $4.09 |
||
|
92081A
|
92081A
92081-1632 SPRING,STOP SCREWSpring,throttle stop screw; |
92081-1632 |
from US $3.80 |
||
|
92144
|
92144
92144-1177 SPRING,THROTTLE VALVESpring,throttle valve; |
92144-1177 |
from US $10.77 |
||
|
223
|
223
223C0416
SCREW-PAN-WS-CROS
|
223C0416 |
— | ||
| replacement | |||||
|
223
|
223
223AB0416 SCREW-PAN-WS-CROS |
223AB0416 |
from US $0.95 |
||
