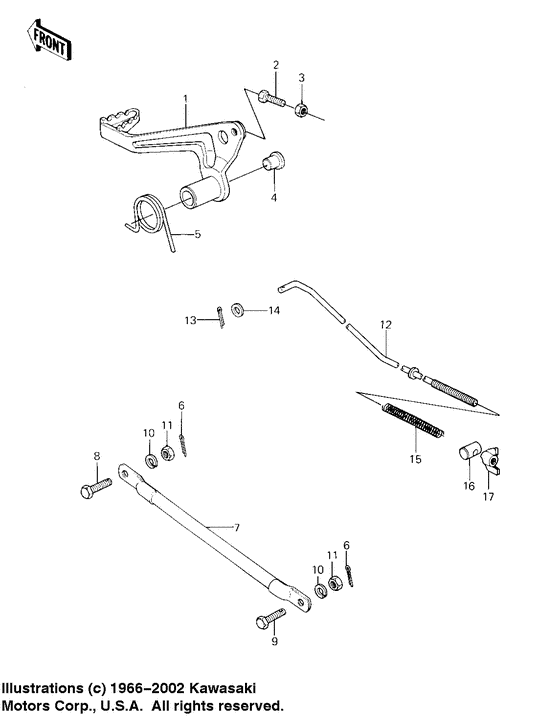

Brake pedal/torque link ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43001-1053 PEDAL,BRAKEPedal,brake; |
43001-1053 |
US $79 |
||
|
2
|
2
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
2
|
2
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
3
|
3
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
3
|
3
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
4
|
4
92066-1078
PLUG,BRAKE PEDAL
Plug,brake pedal; |
92066-1078 |
— | ||
|
5
|
5
92081-1290
SPRING,BRAKE PEDAL
Spring,brake pedal; |
92081-1290 |
— | ||
|
6
|
6
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
6
|
6
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
7
|
7
43007-1024 TORQUE LINK,RR BRAKETorque link,rr brake; |
43007-1024 |
US $34.52 |
||
|
8
|
8
92001-1450 BOLT,10X25Bolt,10x25; |
92001-1450 |
US $4.36 |
||
|
9
|
9
92003-096 BOLT,10X29 |
92003-096 |
from US $7.76 |
||
| replacement | |||||
|
9
|
9
92151-1876 BOLT,10X29 |
92151-1876 |
from US $7.13 |
||
|
10
|
10
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
10
|
10
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
12
|
12
43011-1028 ROD,BRAKERod,brake; |
43011-1028 |
US $16.88 |
||
|
13
|
13
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
13
|
13
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
14
|
14
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
14
|
14
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
15
|
15
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
16
|
16
92043-039
PIN,BRAKE ROD
Pin brake; |
92043-039 |
— | ||
| replacement | |||||
|
16
|
16
92043-0147 PIN,BRAKE RODPin brake; |
92043-0147 |
from US $3.17 |
||
|
17
|
17
92015-4004 NUT,WING,6M/MNut,wing,6m/m; |
92015-4004 |
from US $4.28 |
||
