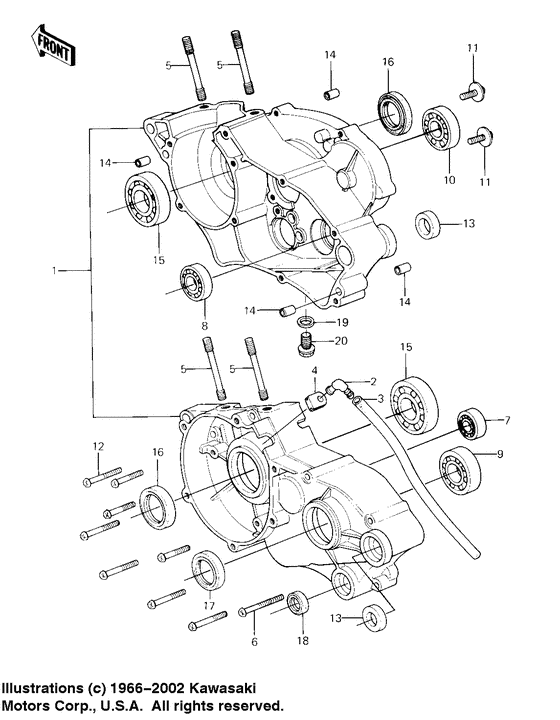

Crankcase ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14001-5075 CRANKCASE SET |
14001-5075 |
US $228.17 |
||
|
2
|
2
14069-1001 BREATHER |
14069-1001 |
US $21.40 |
||
| replacement | |||||
|
2
|
2
14069-1062 BREATHER |
14069-1062 |
from US $16.32 |
||
|
3
|
3
92059-1372 TUBETube,6x9x750; |
92059-1372 |
US $14.80 |
||
| replacement | |||||
|
3
|
3
92059-1939 TUBETube,6x9x750; |
92059-1939 |
from US $10.43 |
||
|
4
|
4
92071-042 GROMMET |
92071-042 |
from US $2.85 |
||
|
5
|
5
172G08110 STUD-8X110 |
172G08110 |
US $11.43 |
||
|
6
|
6
220B0660 SCREW PAN HEAD 6X60Screw pan head 6x60; |
220B0660 |
from US $1.43 |
||
| replacement | |||||
|
6
|
6
220AA0660 SCREW-PAN HEAD,6X60Screw pan head 6x60; |
220AA0660 |
from US $1.24 |
||
|
7
|
7
92045-1235 BEARING-BALL (12X28X8) |
92045-1235 |
from US $16.42 |
||
|
8
|
8
601B6002 BEARING BALL #6002 |
601B6002 |
US $15.95 |
||
|
9
|
9
601B6004 BEARING BALL #6004Bearing ball #6004; |
601B6004 |
from US $8.93 |
||
|
10
|
10
601B6203 BEARING BALL #6203Bearing ball #6203; |
601B6203 |
from US $9.03 |
||
|
11
|
11
92009-1103
SCREW
|
92009-1103 |
— | ||
|
12
|
12
220C0635 SCREW,6X35Screw-pan-cros,6x35,b; |
220C0635 |
US $39.40 |
||
| replacement | |||||
|
12
|
12
92009-1357 SCREW,6X35Screw-pan-cros,6x35,b; |
92009-1357 |
from US $3.11 |
||
|
13
|
13
92027-1281 COLLAR |
92027-1281 |
US $8.73 |
||
|
14
|
14
92042-007 PIN-DOWELPin-dowel; |
92042-007 |
from US $4.44 |
||
|
15
|
15
92045-1006 BEARING,BALLBearing,ball; |
92045-1006 |
US $29.75 |
||
|
16
|
16
92049-1065 OIL SEAL,TCJ20407Oil seal,tbj-20407; |
92049-1065 |
US $21.80 |
||
| replacement | |||||
|
16
|
16
92049-1052 OIL SEAL,TCJ20407Oil seal,tbj-20407; |
92049-1052 |
from US $16.79 |
||
|
17
|
17
92050-013 OIL SEAL SC25376Oil seal sc25376; |
92050-013 |
from US $8.87 |
||
|
18
|
18
92051-005 OIL SEAL,TB13225.5Oil seal,tb13225.5; |
92051-005 |
from US $6.57 |
||
|
19
|
19
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
20
|
20
92066-1241 DRAIN PLUG |
92066-1241 |
from US $3.96 |
||
