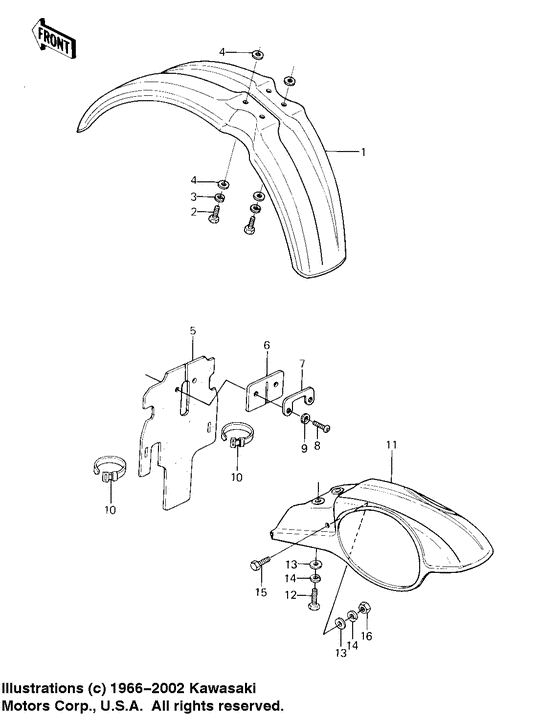

Fenders ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35004-1055-6W
FENDER-FR,L.GREEN
Fender-fr,l.green; |
35004-1055-6W |
— | ||
|
2
|
2
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
2
|
2
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
3
|
3
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
3
|
3
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
4
|
4
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
4
|
4
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
5
|
5
35019-1024
FLAP,FENDER
Flap,fender; |
35019-1024 |
— | ||
|
6
|
6
35019-1019
FLAP,REAR FENDER
Flap,rear fender; |
35019-1019 |
— | ||
|
7
|
7
13169-1407 PLATE,REAR FLAPPlate,rear flap; |
13169-1407 |
US $6.43 |
||
|
8
|
8
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
8
|
8
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
9
|
9
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
9
|
9
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
10
|
10
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
|
11
|
11
35022-1089-AE
FENDER-RR,L.GREEN
Fender-rr,l.green; |
35022-1089-AE |
— | ||
|
12
|
12
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
12
|
12
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
13
|
13
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
13
|
13
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
14
|
14
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
14
|
14
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
15
|
15
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
15
|
15
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
16
|
16
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
16
|
16
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
