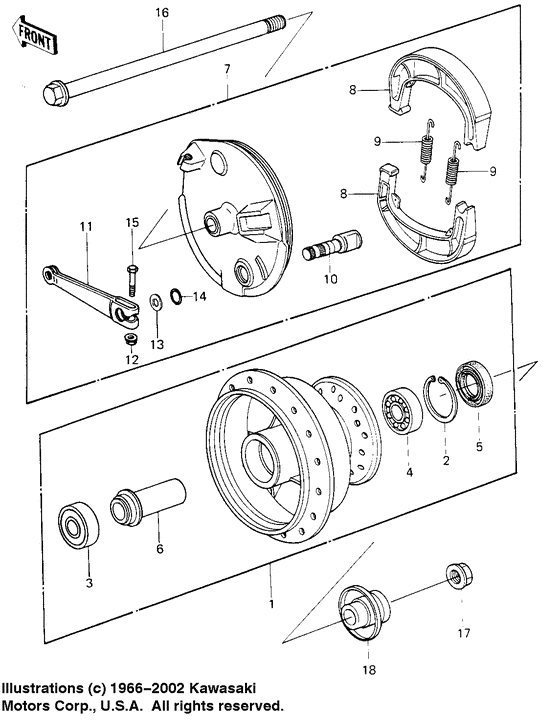

Front hub/brake ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41034-1013 DRUM-ASSY,FR BRKDrum-assy,fr brk; |
41034-1013 |
US $177.01 |
||
|
2
|
2
481J3500 CIRCLIP,35MMCirclip,35mm; |
481J3500 |
from US $1.43 |
||
|
3
|
3
601B6200U BEARING,BALL,#6200UBearing,ball,#6200u; |
601B6200U |
US $14.69 |
||
|
4
|
4
601B6300 BEARING,BALL,#6300Bearing,ball,#6300; |
601B6300 |
US $14.35 |
||
|
5
|
5
654A203507 OIL SEAL,20X35X7Oil seal,20x35x7; |
654A203507 |
US $55 |
||
|
6
|
6
92027-1093 COLLAR,FRONT BRAKECollar,front brake; |
92027-1093 |
US $10.69 |
||
|
7
|
7
41035-1037 PANEL-ASY,FR BRKPanel-asy,fr brk; |
41035-1037 |
US $240.98 |
||
|
8
|
8
41048-1021 SHOE,BRAKEShoe,brake; |
41048-1021 |
US $45.98 |
||
| replacement | |||||
|
8
|
8
41048-1109 SHOE-BRAKEShoe,brake; |
41048-1109 |
US $25.33 |
||
|
9
|
9
92081-1766 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1766 |
from US $5.39 |
||
|
10
|
10
41050-1009 CAM,BRAKE,FRONTCam,brake,front; |
41050-1009 |
US $16.90 |
||
|
11
|
11
41053-1011 LEVER,BRAKE CAM,FRONTLever,brake cam,front; |
41053-1011 |
US $51.66 |
||
|
12
|
12
41072007 NUT,6MMNut,6mm; |
41072007 |
from US $2.85 |
||
|
13
|
13
92022-257 WASHER |
92022-257 |
US $12.82 |
||
|
14
|
14
670B2012 O RING,12MM"o" ring,12mm; |
670B2012 |
from US $2.84 |
||
|
15
|
15
92001-1135 BOLT,HEX HEAD,6X30Bolt,hex head,6x30; |
92001-1135 |
US $3.82 |
||
|
16
|
16
41068-1011 AXLE,FRONTAxle,front; |
41068-1011 |
US $25.49 |
||
|
17
|
17
92015-1415 NUT,10MMNut,10mm; |
92015-1415 |
from US $3.54 |
||
|
18
|
18
92027-1094 COLLAR,FRONT AXLECollar,front axle; |
92027-1094 |
US $13.30 |
||
