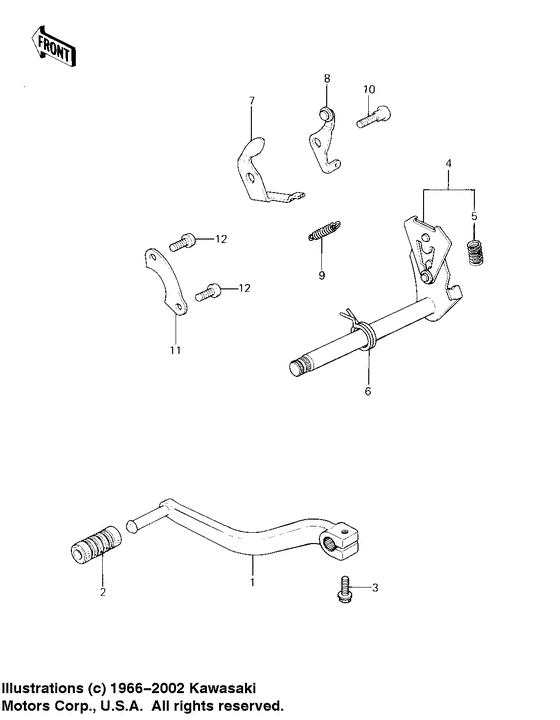

Gear change mechanism ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13156-1049
PEDAL,GEAR CHANGE
Pedal,gear change; |
13156-1049 |
— | ||
|
2
|
2
92160-1108 DAMPER,CHANGE PEDALDamper,change pedal; |
92160-1108 |
US $9.41 |
||
| replacement | |||||
|
2
|
2
92161-2381 DAMPER,CHANGE PEDALDamper,change pedal; |
92161-2381 |
from US $5.70 |
||
|
3
|
3
92001-1352 BOLT,FLANGED,6X22Bolt,flanged,6x22; |
92001-1352 |
from US $2.69 |
||
|
4
|
4
13161-1108
Lever-comp-change sha
Lever-comp-change sha; |
13161-1108 |
— | ||
| replacement | |||||
|
4
|
4
13161-1281
LEVER-COMP-CHANGE SHA
Lever-comp-change sha; |
13161-1281 |
— | ||
|
5
|
5
92081-1275 SPRING CHANGE LEVERSpring change lever; |
92081-1275 |
from US $2.85 |
||
|
6
|
6
92081-1129 SPRING,TENTIONSpring,tention; |
92081-1129 |
from US $6.34 |
||
|
7
|
7
13168-1069 LEVER,POSITIONINGLever,positioning; |
13168-1069 |
from US $7.29 |
||
|
8
|
8
13236-1026 LEVER,POSITIONINGLever,positioning; |
13236-1026 |
from US $6.18 |
||
|
9
|
9
92081-1109 SPRING,CHANGE LEVERSpring,change lever; |
92081-1109 |
from US $3.17 |
||
|
10
|
10
92009-1102 SCREW,CHANGE LEVERScrew,change lever; |
92009-1102 |
from US $3.17 |
||
|
11
|
11
13169-1309 PLATE,CHANGE DRUMPlate,change drum; |
13169-1309 |
from US $6.68 |
||
|
12
|
12
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
12
|
12
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
