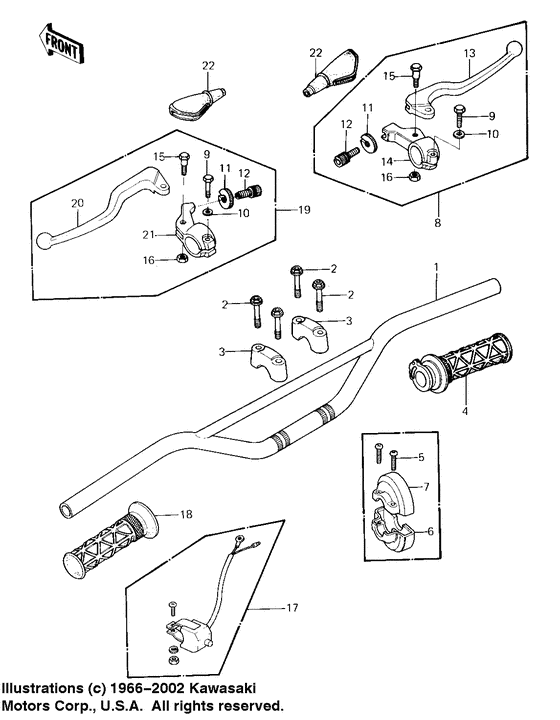

Handlebar ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46003-1082 HANDLEBAR,F.BLACKHandlebar,f.black; |
46003-1082 |
US $98.82 |
||
|
2
|
2
130G0835
BOLT-FLANGED,8X35
Bolt,flanged,8x35; |
130G0835 |
— | ||
| replacements | |||||
|
2
|
2
130CA0835 BOLT-FLANGEDBolt,flanged,8x35; |
130CA0835 |
from US $1.27 |
||
|
2
|
2
130BA0835 BOLT-FLANGED,8X35Bolt,flanged,8x35; |
130BA0835 |
from US $0.95 |
||
|
3
|
3
46012008 HOLDER-HANDLEBARHolder-handlebar; |
46012008 |
from US $24.53 |
||
|
4
|
4
46019-1012 GRIP-ASSY |
46019-1012 |
US $45.32 |
||
|
5
|
5
220B0520
SCREW PAN HEAD 5X20
Screw pan head 5x20; |
220B0520 |
— | ||
| replacement | |||||
|
5
|
5
220AA0520 SCREW-PAN-CROSScrew pan head 5x20; |
220AA0520 |
from US $0.78 |
||
|
6
|
6
32099-1011 HOUSING CONTROL,R.H.Housing control,r.h.; |
32099-1011 |
US $28.60 |
||
|
7
|
7
32099-1014
CASE,R.H,GRIP,UPPER
Case,r.h,grip,upper; |
32099-1014 |
— | ||
|
8
|
8
46076-1010
LEVER ASSY,FRONT BRK
Lever assy,front brk; |
46076-1010 |
— | ||
|
9
|
9
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
9
|
9
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
10
|
10
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
10
|
10
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
11
|
11
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
12
|
12
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
13
|
13
46092-1014
LEVER,FRONT BRAKE
Lever,front brake; |
46092-1014 |
— | ||
|
14
|
14
4606001121 HOLDER,FR LEVER,F.BLKHolder,fr lever,f.blk; |
4606001121 |
US $27.54 |
||
|
15
|
15
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
16
|
16
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
17
|
17
27010-1018
SWITCH,ASSY,ENG STOP
Switch,assy,eng stop; |
27010-1018 |
— | ||
|
18
|
18
46075-1015 GRIP |
46075-1015 |
US $15.77 |
||
|
19
|
19
46076-1011
Lever assy,clutch
Lever assy,clutch; |
46076-1011 |
— | ||
|
20
|
20
46092-1015 LEVER,CLUTCHLever,clutch; |
46092-1015 |
US $18.32 |
||
|
21
|
21
4609401521 HOLDER,CL LEVER,F.BLKHolder,cl lever,f.blk; |
4609401521 |
US $30.65 |
||
|
22
|
22
49006-1017 BOOTS,LEVER HOLDERBoots,lever holder; |
49006-1017 |
from US $16.47 |
||
