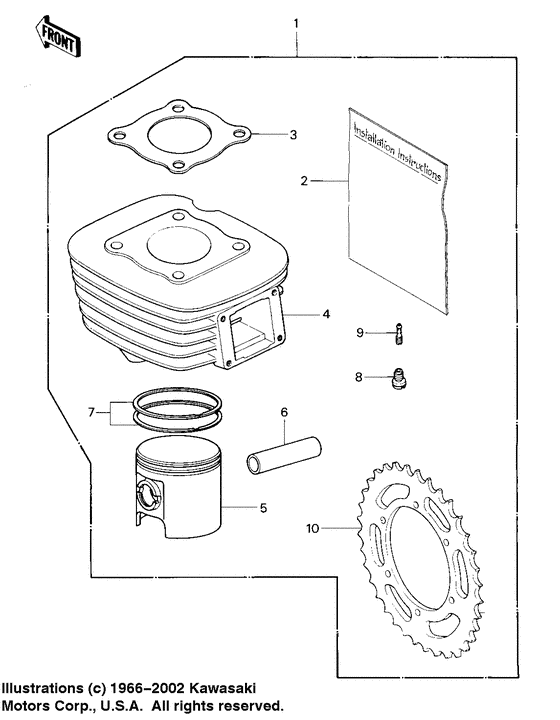

Optional parts ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99916-1010
Kit-kx100cc
|
99916-1010 |
— | ||
|
2
|
2
99963-0047-01 INST 100CC KIT |
99963-0047-01 |
US $1.48 |
||
|
3
|
3
11004-1045 GASKET-HEAD,CYLINDERGasket-head,cylinder; |
11004-1045 |
US $7.90 |
||
|
4
|
4
11005-1147 CYLINDER-ENGINE |
11005-1147 |
US $501.32 |
||
|
5
|
5
13001-1081 PISTON |
13001-1081 |
US $60.01 |
||
|
6
|
6
13002-1018 PIN-PISTON |
13002-1018 |
from US $11.72 |
||
| replacement | |||||
|
6
|
6
13002-0730 PIN-PISTON |
13002-0730 |
from US $20.43 |
||
|
7
|
7
13008-5041 RING-SET-PISTON |
13008-5041 |
US $42.48 |
||
|
8
|
8
92063-103 JET-MAIN NO 132.5R |
92063-103 |
US $8.73 |
||
| replacement | |||||
|
8
|
8
92063-104 MAIN JET NO 135R |
92063-104 |
US $11.83 |
||
|
9
|
9
92064-024 JET-PILOT NO 40Jet-pilot no 40; |
92064-024 |
from US $13.62 |
||
|
10
|
10
42041-1016 REAR SPROCKET,48TRear sprocket,48t; |
42041-1016 |
US $87.26 |
||
