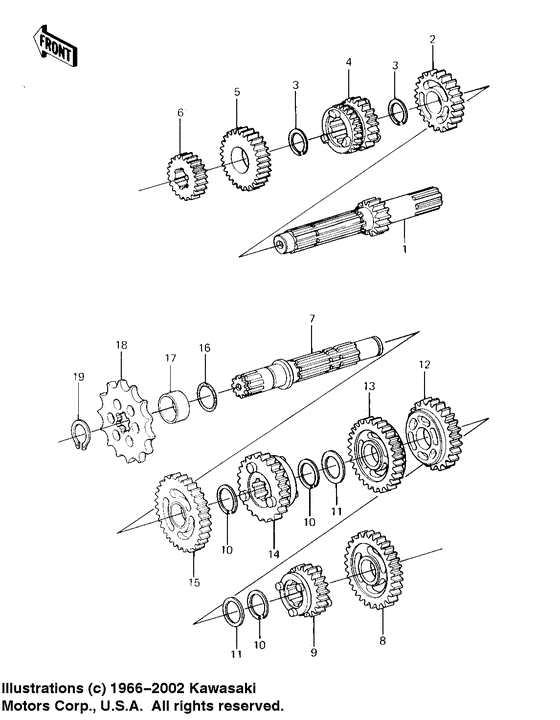

Transmission ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13127-1032 LOW GEAR,13TLow gear,13t; |
13127-1032 |
US $94.36 |
||
|
2
|
2
13129-1217 5TH GEAR,23T5th gear,23t; |
13129-1217 |
US $50.67 |
||
|
3
|
3
92033-1060 RING,SNAPRing,snap; |
92033-1060 |
from US $2.69 |
||
|
4
|
4
13129-1378 GEAR,INPUT,3RD&4THGear,input,3rd&4th; |
13129-1378 |
US $145.73 |
||
|
5
|
5
13129-1218 TOP GEAR,24TTop gear,24t; |
13129-1218 |
US $51.82 |
||
|
6
|
6
13129-1215 2ND GEAR,16T2nd gear,16t; |
13129-1215 |
from US $42.34 |
||
|
7
|
7
13128-1028 SHAFT,OUTPUTShaft,output; |
13128-1028 |
from US $112.80 |
||
|
8
|
8
13129-1219 LOW GEAR,37TLow gear,37t; |
13129-1219 |
US $57.62 |
||
|
9
|
9
13129-1223 5TH GEAR,28T5th gear,28t; |
13129-1223 |
US $58.66 |
||
|
10
|
10
92033-028 CIRCLIPCirclip; |
92033-028 |
from US $5.54 |
||
|
11
|
11
92024-055 WASHER,LOCKWasher,lock; |
92024-055 |
US $3.29 |
||
|
12
|
12
13129-1222 4TH GEAR,30T4th gear,30t; |
13129-1222 |
US $37.89 |
||
| replacement | |||||
|
12
|
12
13129-1315 GEAR,OUTPUT,4TH,30T4th gear,30t; |
13129-1315 |
US $51.98 |
||
|
13
|
13
13129-1221 3RD GEAR,31T3rd gear,31t; |
13129-1221 |
US $60.37 |
||
| replacement | |||||
|
13
|
13
13129-1377 GEAR,OUTPUT,3RD,31T3rd gear,31t; |
13129-1377 |
US $61.29 |
||
|
14
|
14
13129-1339 GEAR,OUTPUT,TOP,26TGear,output,top,26t; |
13129-1339 |
US $66.01 |
||
|
15
|
15
13129-1220 2ND GEAR,34T2nd gear,34t; |
13129-1220 |
US $61.29 |
||
|
16
|
16
92055-022 0 RING"0" ring; |
92055-022 |
from US $3.48 |
||
|
17
|
17
92027-1077 COLLAR,ENG SPROCKETCollar,eng sprocket; |
92027-1077 |
from US $13.94 |
||
|
18
|
18
13144-1022 SPROCKET,ENGINE,14TSprocket,engine,14t; |
13144-1022 |
from US $24.50 |
||
|
19
|
19
480J2000 CIRCLIP, 20MMCirclip, 20mm; |
480J2000 |
from US $1.27 |
||
