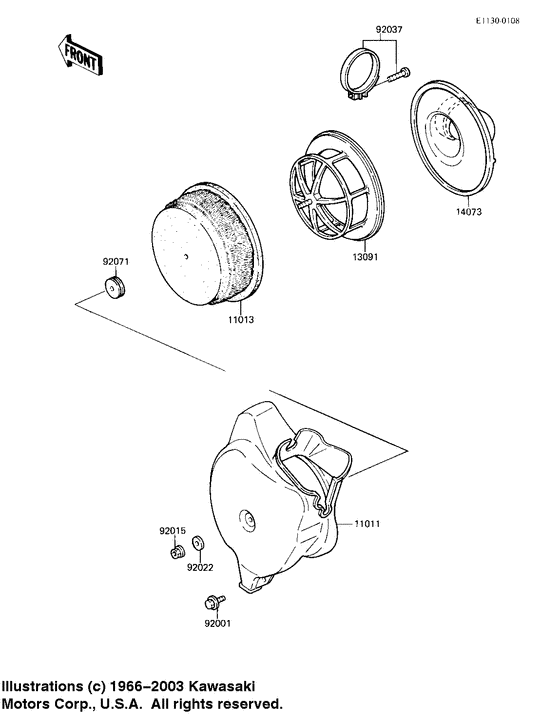

Air cleaner Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-1127
CASE-AIR FILTER
|
11011-1127 |
— | ||
|
11013
|
11013
11013-1070
Element-air filter
|
11013-1070 |
— | ||
|
13091
|
13091
13091-1164
HOLDER,ELEMENT
Holder,element; |
13091-1164 |
— | ||
|
14073
|
14073
14073-1093
DUCT,AIR FILTER
Duct,air filter; |
14073-1093 |
— | ||
|
92001
|
92001
92001-1516 BOLT,W/WASHER,6X12Bolt,w/washer,6x12; |
92001-1516 |
from US $3.01 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-024 WASHER,7X16X1.2Washer plain; |
92022-024 |
from US $2.53 |
||
|
92037
|
92037
92037-1484
CLAMP,CARBURETOR HOLD
Clamp,carburetor hold; |
92037-1484 |
— | ||
|
92071
|
92071
92071-1053
GROMMET,AIR FILTER
Grommet,air filter; |
92071-1053 |
— | ||
