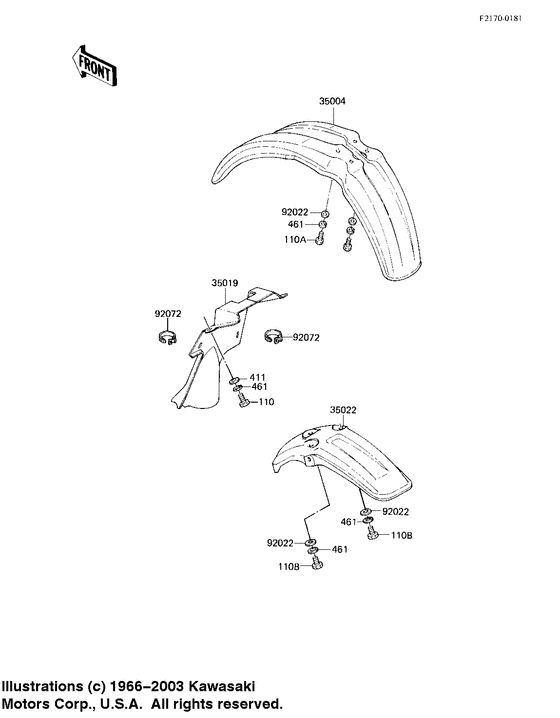

Fenders Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
110
|
110
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
110A
|
110A
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
110A
|
110A
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
110B
|
110B
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
110B
|
110B
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
35004
|
35004
35004-1092-6W
Fender-front,l.green
35004-1250-6w (canada); |
35004-1092-6W |
— | ||
| replacement | |||||
|
35004
|
35004
35004-1250-6W FENDER-FRONT,L.GREEN35004-1250-6w (canada); |
35004-1250-6W |
US $47.27 |
||
|
35019
|
35019
35019-1055
FLAP,REAR FENDER
Flap,rear fender; |
35019-1055 |
— | ||
|
35022
|
35022
35022-1247-6W
FENDER-COMP-REAR,L.GR
Fender-comp-rear,l.gr; |
35022-1247-6W |
— | ||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
