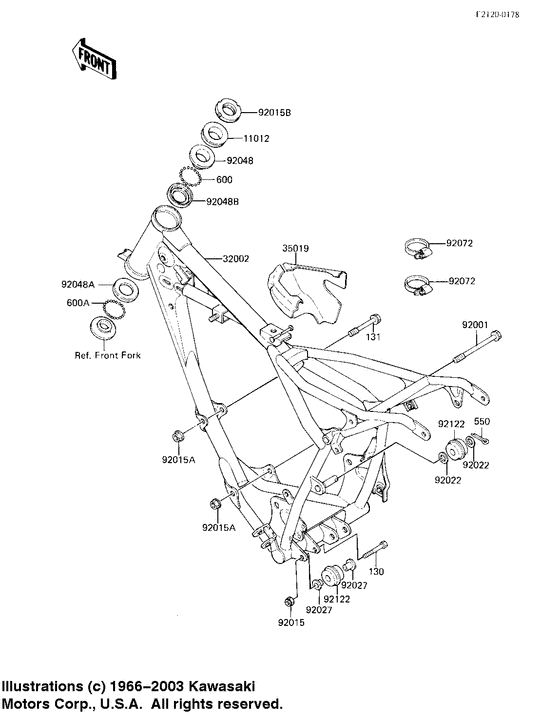

Frame/frame fittings Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0640
BOLT-FLANGED,6X40
Bolt,flanged,6x40; |
130G0640 |
— | ||
| replacement | |||||
|
130
|
130
130BA0640 BOLT-FLANGED,6X40Bolt,flanged,6x40; |
130BA0640 |
from US $0.79 |
||
|
131
|
131
131G0860 BOLT-FLANGEDBolt 8x60; |
131G0860 |
US $2.14 |
||
| replacement | |||||
|
131
|
131
130BA0860 BOLT-FLANGEDBolt 8x60; |
130BA0860 |
from US $1.56 |
||
|
550
|
550
550D2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550AA2515 |
from US $0.78 |
||
|
600
|
600
600A0600 BALL STEEL 3/16'Ball steel 3/16'; |
600A0600 |
from US $0.79 |
||
|
600A
|
600A
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
11012
|
11012
46098018 CAP,STEERING STEMCap,steering stem; |
46098018 |
from US $4.75 |
||
|
32002
|
32002
32002-1526 FRAME-COMP |
32002-1526 |
US $521.03 |
||
|
35019
|
35019
35019-1052 FLAP,AIR FILTER CASEFlap,air filter case; |
35019-1052 |
US $16.27 |
||
|
92001
|
92001
92001-1367 BOLT,ENGINE MOUNTBolt,engine mount; |
92001-1367 |
US $6.02 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1143 NUT-8MMNut-8mm; |
92015-1143 |
from US $0.99 |
||
|
92015B
|
92015B
92015-1222 NUT,STEERING LOCK,25MNut,steering lock,25m; |
92015-1222 |
from US $20.91 |
||
|
92022
|
92022
92022-239 WASHER,PLAINWasher,plain; |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1183 COLLARCollar,radiator guard; |
92027-1183 |
from US $4.09 |
||
|
92048
|
92048
92047-014 CONE,STRG STM BRG,UPCone,strg stm brg,up; |
92047-014 |
from US $10.61 |
||
| replacement | |||||
|
92048
|
92048
92048-0035 Race,steering Stem BeCone,strg stm brg,up; |
92048-0035 |
from US $10.61 |
||
|
92048A
|
92048A
92048-005 RACE STEERING BEARINGRace steering bearing; |
92048-005 |
from US $10.77 |
||
|
92048B
|
92048B
92048-009 RACE,STRG STM BEARINGRace,strg stm bearing; |
92048-009 |
from US $11.88 |
||
| replacement | |||||
|
92048B
|
92048B
92048-0038 Race,steering Stem BeRace,strg stm bearing; |
92048-0038 |
from US $11.88 |
||
|
92072
|
92072
92072-1091
BAND
Bank,reservoir tank; |
92072-1091 |
— | ||
| replacement | |||||
|
92072
|
92072
92072-0060
BAND
Bank,reservoir tank; |
92072-0060 |
— | ||
|
92122
|
92122
92122-1030 ROLLER,CHAIN GUIDERoller,chain guide; |
92122-1030 |
from US $21.07 |
||
