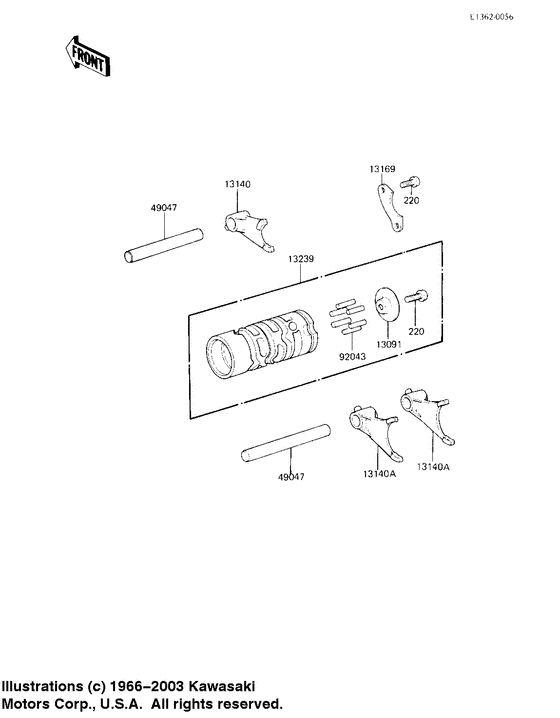

Gear change drum & forks Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
13091
|
13091
13091-1098 HOLDER CHANGE DRUMHolder change drum; |
13091-1098 |
from US $10.77 |
||
|
13140
|
13140
13140-1060 FORK-SHIFT,INPUT |
13140-1060 |
US $84.49 |
||
| replacement | |||||
|
13140
|
13140
13140-1300 FORK-SHIFT,INPUT |
13140-1300 |
from US $58.04 |
||
|
13140A
|
13140A
13140-1061 FORK-SHIFT,OUTPUT |
13140-1061 |
from US $67.92 |
||
| replacement | |||||
|
13140A
|
13140A
13140-1301 FORK-SHIFT,OUTPUT |
13140-1301 |
from US $58.04 |
||
|
13169
|
13169
13169-1309 PLATE,CHANGE DRUMPlate,change drum; |
13169-1309 |
from US $6.68 |
||
|
13239
|
13239
13239-1065 DRUM-ASSY-CHANGE |
13239-1065 |
from US $103.28 |
||
|
49047
|
49047
49047-1009 ROD,SHIFT,10X90Rod,shift,10x90; |
49047-1009 |
from US $11.72 |
||
|
92043
|
92043
92042-029 PIN,CHANG DRUMPin,chang drum; |
92042-029 |
from US $3.33 |
||
