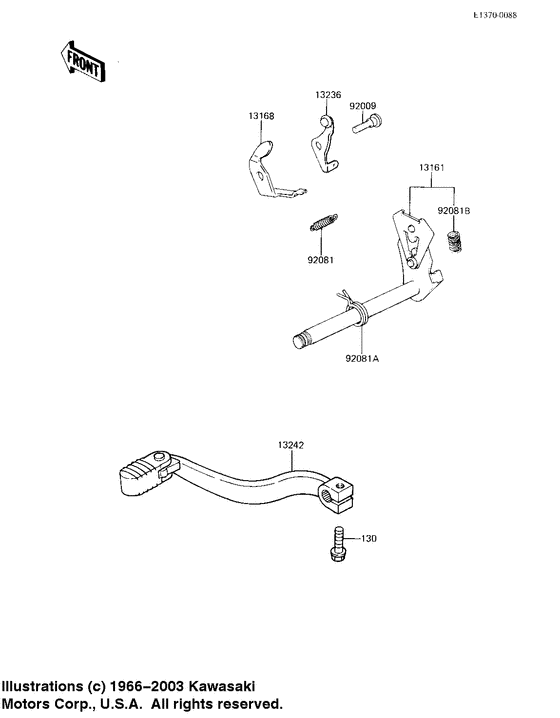

Gear change mechanism Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130P0620 |
from US $1.19 |
||
| replacement | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
13161
|
13161
13161-1108
Lever-comp-change sha
Lever-comp-change sha; |
13161-1108 |
— | ||
| replacement | |||||
|
13161
|
13161
13161-1281
LEVER-COMP-CHANGE SHA
Lever-comp-change sha; |
13161-1281 |
— | ||
|
13168
|
13168
13168-1069 LEVER,POSITIONINGLever,positioning; |
13168-1069 |
from US $7.29 |
||
|
13236
|
13236
13236-1026 LEVER,POSITIONINGLever,positioning; |
13236-1026 |
from US $6.18 |
||
|
13242
|
13242
13242-1157
LEVER-ASSY-CHANGE
|
13242-1157 |
— | ||
|
92009
|
92009
92009-1102 SCREW,CHANGE LEVERScrew,change lever; |
92009-1102 |
from US $3.17 |
||
|
92081
|
92081
92081-1109 SPRING,CHANGE LEVERSpring,change lever; |
92081-1109 |
from US $3.17 |
||
|
92081A
|
92081A
92081-1129 SPRING,TENTIONSpring,tention; |
92081-1129 |
from US $6.34 |
||
|
92081B
|
92081B
92081-1275 SPRING CHANGE LEVERSpring change lever; |
92081-1275 |
from US $2.85 |
||
