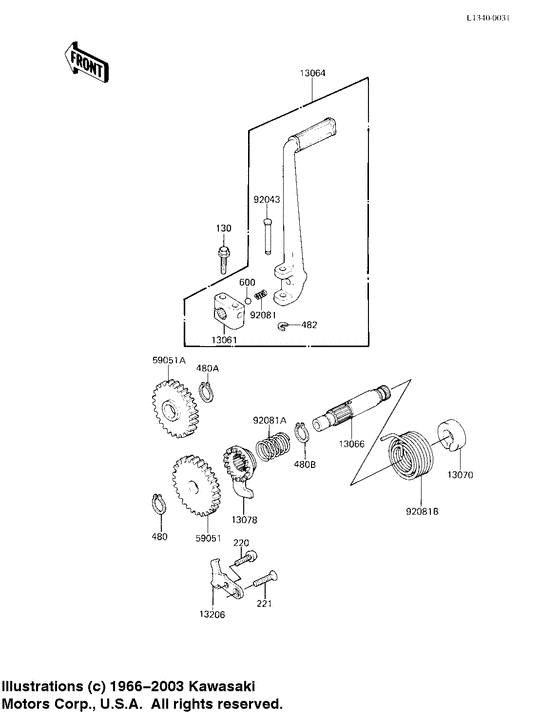

Kickstarter mechanism Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130P0620 |
from US $1.19 |
||
| replacement | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
220
|
220
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
220
|
220
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.95 |
||
|
221
|
221
221B0618
SCREW,6X18
Screw 6x18; |
221B0618 |
— | ||
| replacement | |||||
|
221
|
221
221AA0618 SCREW,6X18Screw 6x18; |
221AA0618 |
from US $0.95 |
||
|
480
|
480
480J1200 CIRCLIP 12MMCirclip 12mm; |
480J1200 |
from US $0.82 |
||
|
480A
|
480A
480J1500 CIRCLIP 15MMCirclip 15mm; |
480J1500 |
from US $1.11 |
||
|
480B
|
480B
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
482
|
482
482K5000 CIRCLIP 5MMCirclip 5mm; |
482K5000 |
US $44.96 |
||
|
600
|
600
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
13061
|
13061
13061-1053 BOSS,KICK PEDALBoss,kick pedal; |
13061-1053 |
US $20.77 |
||
|
13064
|
13064
13064-1035
LEVER-ASSY-KICK,PEDAL
Lever-assy-kick,pedal; |
13064-1035 |
— | ||
|
13066
|
13066
13066-1027 SHAFT-KICK |
13066-1027 |
US $57.89 |
||
|
13070
|
13070
13070-1034 GUIDE,KICK SPRINGGuide,kick spring; |
13070-1034 |
from US $7.13 |
||
|
13078
|
13078
13078-1004 RATCHET |
13078-1004 |
from US $39.64 |
||
|
13206
|
13206
13206-1008 GUIDE-KICK,RATCHETGuide-kick,ratchet; |
13206-1008 |
US $9.99 |
||
|
59051
|
59051
59051-1026 GEAR,KICK,32TGear,kick,32t; |
59051-1026 |
from US $34.86 |
||
|
59051A
|
59051A
59051-1027 GEAR,IDLE,30TGear,idle,30t; |
59051-1027 |
from US $42.34 |
||
|
92043
|
92043
92043-1050
PIN,KICK PEDAL
Pin,kick pedal; |
92043-1050 |
— | ||
|
92081
|
92081
92081-020 SPRING, KICK PEDALSpring kick pedal; |
92081-020 |
from US $2.85 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHETSpring,ratchet; |
92081-122 |
from US $5.70 |
||
|
92081B
|
92081B
92081-1434 SPRING,KICKSpring,kick; |
92081-1434 |
from US $11.40 |
||
