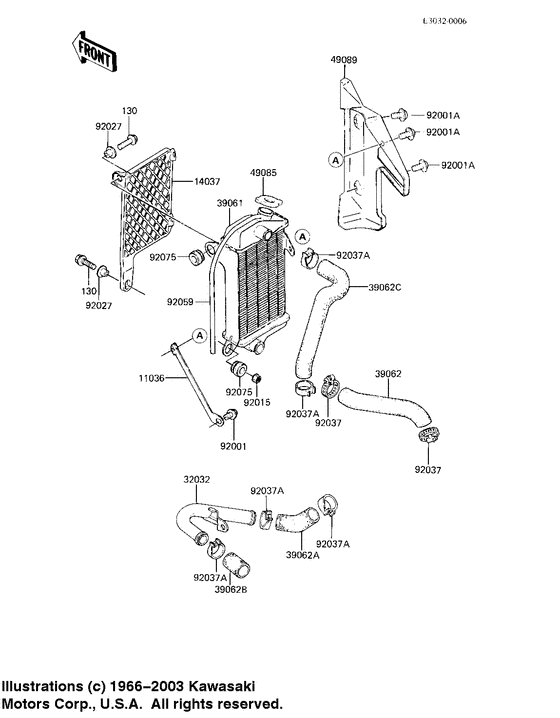

Radiator Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0625
BOLT-FLANGED,6X25
Bolt,flanged,6x25; |
130G0625 |
— | ||
| replacement | |||||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25Bolt,flanged,6x25; |
130BA0625 |
from US $0.79 |
||
|
11036
|
11036
11036-1736 BRACKET-A,RADIATORBracket-a,radiator; |
11036-1736 |
US $6.46 |
||
|
14037
|
14037
14037-1005 SCREEN,RADIATORScreen,radiator; |
14037-1005 |
US $35.77 |
||
|
32032
|
32032
32032-1912 PIPE,COOLINGPipe,cooling; |
32032-1912 |
US $55.89 |
||
|
39061
|
39061
39061-1019 EXCHANGER-ASSY-HEAT |
39061-1019 |
US $561.19 |
||
|
39062
|
39062
39062-1013 HOSE-COOLING,RADIATORHose-cooling,radiator; |
39062-1013 |
US $26.96 |
||
|
39062A
|
39062A
39062-1014 HOSE-COOLING,RADIATORHose-cooling,radiator; |
39062-1014 |
US $14.67 |
||
|
39062B
|
39062B
39062-1015 HOSE-COOLING,RADIATORHose-cooling,cylinder; |
39062-1015 |
US $22.25 |
||
| replacement | |||||
|
39062B
|
39062B
39062-1256 HOSE-COOLING,RADIATORHose-cooling,cylinder; |
39062-1256 |
from US $16.01 |
||
|
39062C
|
39062C
39062-1016 HOSE-COOLING,COVER-CLHose-cooling,cover-cl; |
39062-1016 |
US $32.24 |
||
|
49085
|
49085
49085-1003
Cap-assy-pressure
|
49085-1003 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
49089
|
49089
49089-1003-6W
SHROUD-ENGINE,L.GREEN
Shroud-engine,l.green; |
49089-1003-6W |
— | ||
|
92001
|
92001
92001-1516 BOLT,W/WASHER,6X12Bolt,w/washer,6x12; |
92001-1516 |
from US $3.01 |
||
|
92001A
|
92001A
92009-1286 SCREW,6X10Screw,6x10; |
92009-1286 |
from US $2.69 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92027
|
92027
92027-1183 COLLARCollar,radiator guard; |
92027-1183 |
from US $4.09 |
||
|
92037
|
92037
92037-1281 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1281 |
US $14.49 |
||
|
92037A
|
92037A
92037-1364 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1364 |
US $6.21 |
||
|
92059
|
92059
92059-1383
TUBE,6X9X700
Tube,5x9x800; |
92059-1383 |
— | ||
| replacement | |||||
|
92059
|
92059
92191-1211 TUBE,6X9X700Tube,5x9x800; |
92191-1211 |
from US $6.38 |
||
|
92075
|
92075
92075-1352 DAMPER,RADIATORDamper,radiator; |
92075-1352 |
from US $3.80 |
||
