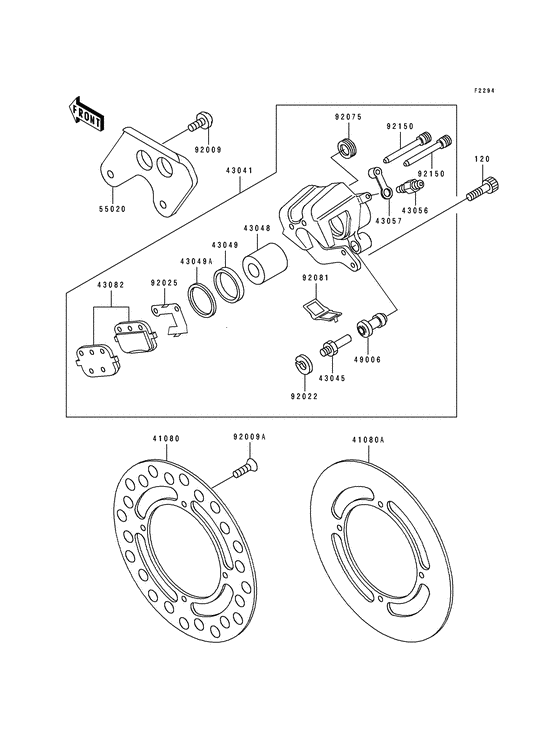

Rear brake Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1269 DISC,RRDisc,rr; |
41080-1269 |
US $204.73 |
||
|
41080A
|
41080A
41080-1272 DISC,RRDisc,rr; (option) |
41080-1272 |
from US $204.73 |
||
|
43041
|
43041
43041-1428 CALIPER-ASSY,RRCaliper-assy,rr; |
43041-1428 |
US $314.55 |
||
| replacements | |||||
|
43041
|
43041
43080-5134 CALIPER-SUB-ASSY,RRCaliper-assy,rr; |
43080-5134 |
from US $200.38 |
||
|
43041
|
43041
43082-1082 PAD-ASSY-BRAKECaliper-assy,rr; |
43082-1082 |
from US $42.35 |
||
|
43041
|
43041
43041-1805 CALIPER-ASSY,RRCaliper-assy,rr; |
43041-1805 |
US $314.55 |
||
|
43045
|
43045
43045-1010 SHAFT-CALIPER |
43045-1010 |
from US $14.10 |
||
|
43048
|
43048
43048-1064 PISTON-CALIPER |
43048-1064 |
from US $43.98 |
||
|
43049
|
43049
43049-1060 PACKING,PISTON SEALPacking,piston seal; |
43049-1060 |
from US $13.46 |
||
|
43049A
|
43049A
43049-1061 PACKING,PISTON SEALPacking,piston seal; |
43049-1061 |
from US $7.44 |
||
|
43056
|
43056
43056-1055 Breather-brake |
43056-1055 |
from US $8.41 |
||
| replacement | |||||
|
43056
|
43056
43056-1056 BREATHER,BRAKE |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
43082
|
43082
43082-1082 PAD-ASSY-BRAKE |
43082-1082 |
from US $42.35 |
||
|
49006
|
49006
49006-1088 BOOT,CALIPERBoot,caliper; |
49006-1088 |
from US $8.55 |
||
|
55020
|
55020
55020-1247-6F
GUARD,CALIPER,P.WHITE
Guard,caliper,p.white; |
55020-1247-6F |
— | ||
|
92009
|
92009
92009-1286 SCREW,6X10Screw,6x10,white; |
92009-1286 |
from US $2.69 |
||
|
92009A
|
92009A
92009-1375 SCREW,6X10Screw,6x10; |
92009-1375 |
from US $2.53 |
||
|
92022
|
92022
92022-1373 WASHERWasher,wave; |
92022-1373 |
from US $2.53 |
||
|
92025
|
92025
92025-1817 SHIM,PADShim,pad; |
92025-1817 |
from US $6.34 |
||
|
92075
|
92075
92075-1414 DAMPER |
92075-1414 |
from US $4.12 |
||
|
92081
|
92081
92081-1502 SPRING,PADSpring,pad; |
92081-1502 |
from US $5.54 |
||
|
92150
|
92150
92150-1144 BOLT |
92150-1144 |
from US $6.34 |
||
|
120
|
120
120P0816 BOLT-SOCKET |
120P0816 |
US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0816 BOLT-SOCKET |
120CA0816 |
from US $1.27 |
||
