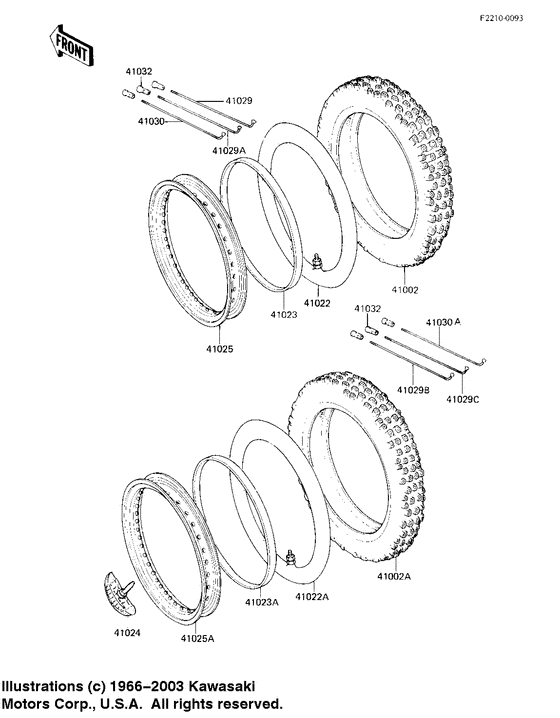

Wheels/tires Diagram Kawasaki KX80 KX80
- Year
- 1983
- Model code
- KX80-E1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41002
|
41002
41002-1574 TIRE |
41002-1574 |
from US $106.96 |
||
|
41002A
|
41002A
41002-1222 TIRE 410-14 K490 R |
41002-1222 |
US $88.51 |
||
| replacement | |||||
|
41002A
|
41002A
41002-1787 TIRE,RR,90/100-14,K69 |
41002-1787 |
from US $141.50 |
||
|
41022
|
41022
41022-1039 TUBE,TIRE,2.75-17Tube,tire,2.75-17; |
41022-1039 |
US $20.02 |
||
| replacement | |||||
|
41022
|
41022
41022-1101 TUBE-TIRETube,tire,2.75-17; |
41022-1101 |
US $30.42 |
||
|
41022A
|
41022A
41022-042
TUBE 275/410/425-14
|
41022-042 |
— | ||
|
41023
|
41023
41023-1067 BAND-RIM,100/90-17(D)Band-rim,fr; |
41023-1067 |
US $11.97 |
||
| replacement | |||||
|
41023
|
41023
41023-1082 BAND-RIM,100/90-17(D)Band-rim,fr; |
41023-1082 |
from US $9.19 |
||
|
41023A
|
41023A
41023-1025
BAND-RIM,RR
Band,rim,4.10-14; |
41023-1025 |
— | ||
| replacement | |||||
|
41023A
|
41023A
41023-1068 BAND-RIM,RRBand,rim,4.10-14; |
41023-1068 |
from US $9.19 |
||
|
41024
|
41024
41024010 PROTECTOR,BEAD 1.60AProtector,bead 1.60a; |
41024010 |
from US $57.85 |
||
|
41025
|
41025
41025-1077 RIM,FR,1.40X17Rim,fr,1.40x17; |
41025-1077 |
US $240.98 |
||
|
41025A
|
41025A
41025-1078 RIM,RR,1.60X14Rim,rr,1.60x14; |
41025-1078 |
US $231.39 |
||
|
41029
|
41029
41029-1076 SPOKE-INNER |
41029-1076 |
US $5.17 |
||
|
41029A
|
41029A
41029-1077 SPOKE-INNER |
41029-1077 |
US $5.11 |
||
|
41029B
|
41029B
41029-1078 SPOKE-INNER |
41029-1078 |
US $5.74 |
||
|
41029C
|
41029C
41029-1079 SPOKE-INNER |
41029-1079 |
US $6.25 |
||
|
41030
|
41030
41030-1058 SPOKE-OUTER |
41030-1058 |
US $6.08 |
||
|
41030A
|
41030A
41030-1059 SPOKE-OUTER |
41030-1059 |
US $6.25 |
||
|
41032
|
41032
41032-1057 NIPPLE-SPOKE |
41032-1057 |
from US $1.68 |
||
