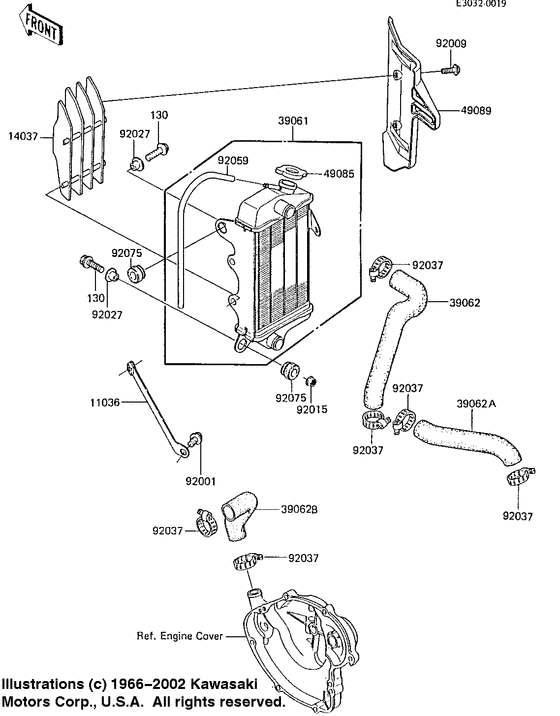

Radiator ('85 kx80-e3) Diagram Kawasaki KX80 KX80
- Year
- 1985
- Model code
- KX80-E3
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0625
BOLT-FLANGED,6X25
Bolt,flanged,6x25; |
130G0625 |
— | ||
| replacement | |||||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25Bolt,flanged,6x25; |
130BA0625 |
from US $0.79 |
||
|
11036
|
11036
11036-1736 BRACKET-A,RADIATORBracket-a,radiator; |
11036-1736 |
US $6.46 |
||
|
14037
|
14037
14037-1121-6C SCREEN,RH,EBONYScreen,rh,ebony; |
14037-1121-6C |
US $21.38 |
||
| replacement | |||||
|
14037
|
14037
14037-0047-6C SCREEN,RH,EBONYScreen,rh,ebony; |
14037-0047-6C |
from US $15.05 |
||
|
39061
|
39061
39061-1062 Radiator-assy |
39061-1062 |
US $642.71 |
||
|
39062
|
39062
39062-1016 HOSE-COOLING,COVER-CLHose-cooling,cover-cl; |
39062-1016 |
US $32.24 |
||
|
39062A
|
39062A
39062-1051
HOSE-COOLING
|
39062-1051 |
— | ||
|
39062B
|
39062B
39062-1052
HOSE-COOLING,RADIATOR
Hose-cooling,radiator; |
39062-1052 |
— | ||
|
49085
|
49085
49085-1003
Cap-assy-pressure
|
49085-1003 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
49089
|
49089
49089-1056-6W SHROUD-ENGINE,RH,L.GRShroud-engine,rh,l.gr; |
49089-1056-6W |
from US $34.26 |
||
|
92001
|
92001
92001-1517 BOLT,W/WASHER,6X12Bolt,w/washer,6x12; |
92001-1517 |
from US $3.80 |
||
|
92009
|
92009
92009-1287
Screw,6x14
Screw,6x14; |
92009-1287 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0401 SCREW,6X14Screw,6x14; |
92172-0401 |
from US $1.11 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92027
|
92027
92027-1183 COLLARCollar,radiator guard; |
92027-1183 |
from US $4.09 |
||
|
92037
|
92037
92037-1589 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1589 |
from US $12.04 |
||
|
92059
|
92059
92059-1383
TUBE,6X9X700
Tube,5x9x800; |
92059-1383 |
— | ||
| replacement | |||||
|
92059
|
92059
92191-1211 TUBE,6X9X700Tube,5x9x800; |
92191-1211 |
from US $6.38 |
||
|
92075
|
92075
92075-1352 DAMPER,RADIATORDamper,radiator; |
92075-1352 |
from US $3.80 |
||
