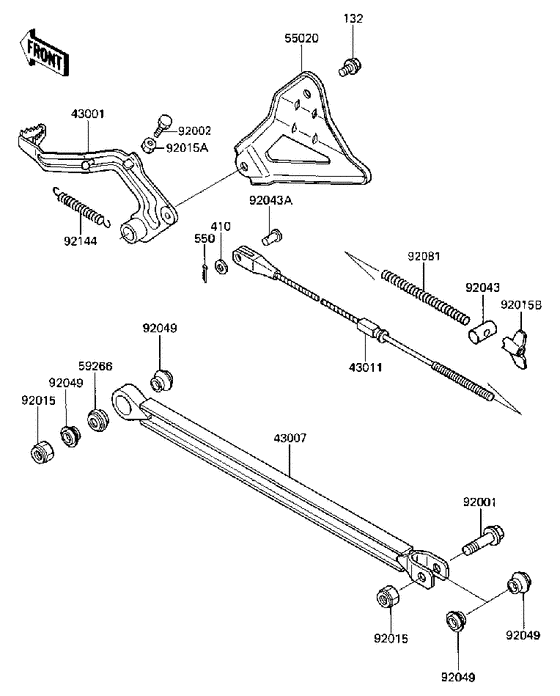

Brake pedal/torque link Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1987
- Model code
- KX80-J2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0610
BOLT-FLANGED-SMALL,6X
|
132G0610 |
— | ||
| replacement | |||||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6X |
132BA0610 |
from US $0.79 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
43001
|
43001
43001-1189
LEVER-BRAKE,PEDAL
Lever-brake,pedal; |
43001-1189 |
— | ||
|
43007
|
43007
43007-1129 ROD-TORQUE |
43007-1129 |
US $117.02 |
||
|
43011
|
43011
43011-1127 ROD-BRAKE |
43011-1127 |
US $23.02 |
||
|
55020
|
55020
55020-1200
GUARD,BRAKE PEDAL
Guard,brake pedal; |
55020-1200 |
— | ||
|
59266
|
59266
59266-1013
JOINT-BALL,BRAKE PANE
Joint-ball,brake pane; |
59266-1013 |
— | ||
|
92001
|
92001
92001-1738 BOLT |
92001-1738 |
US $3.04 |
||
|
92002
|
92002
92002-1373 BOLT,6X20Bolt,6x20; |
92002-1373 |
from US $3.01 |
||
|
92015
|
92015
92015-1134 NUT,8MMNut,8mm; |
92015-1134 |
US $5.35 |
||
|
92015A
|
92015A
92015-1391 NUT,6MMNut,6mm; |
92015-1391 |
from US $2.38 |
||
|
92015B
|
92015B
92015-4004 NUT,WING,6M/MNut,wing,6m/m; |
92015-4004 |
from US $4.28 |
||
|
92043
|
92043
92043-039
PIN,BRAKE ROD
Pin brake; |
92043-039 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-0147 PIN,BRAKE RODPin brake; |
92043-0147 |
from US $3.17 |
||
|
92043A
|
92043A
92043-064
PIN-BRAKE ROD FITTING
Pin-brake rod fitting; |
92043-064 |
— | ||
| replacement | |||||
|
92043A
|
92043A
92043-125 PINPin-brake rod fitting; |
92043-125 |
from US $3.96 |
||
|
92049
|
92049
92049-1100
SEAL-OIL,TORQUE ROD
Seal-oil,torque rod; |
92049-1100 |
— | ||
|
92081
|
92081
92081-1688 SPRING,BAAKE RODSpring,baake rod; |
92081-1688 |
from US $3.01 |
||
|
92144
|
92144
92144-1047
SPRING,BRAKE PEDAL RE
Spring,brake pedal re; |
92144-1047 |
— | ||
