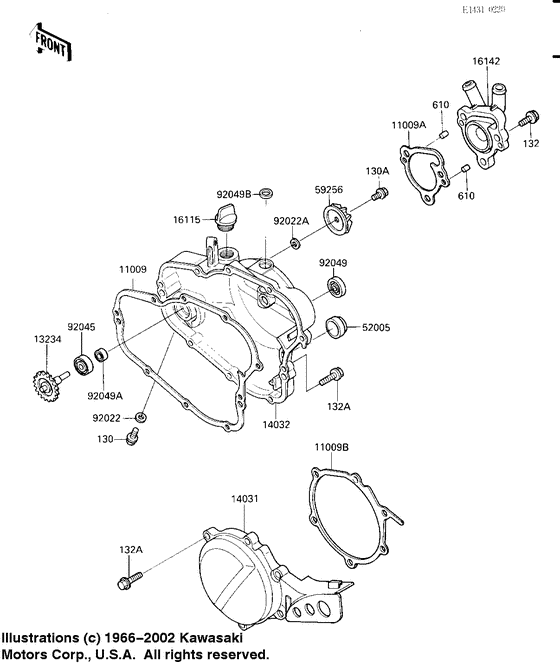

Engine cover Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1987
- Model code
- KX80-J2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1534 Gasket,clutch coverGasket,clutch cover; |
11009-1534 |
US $11.29 |
||
| replacements | |||||
|
11009
|
11009
11061-0122 GASKET,CLUTCH COVERGasket,clutch cover; |
11061-0122 |
from US $4.91 |
||
|
11009
|
11009
11009-1971 GASKET,CLUTCH COVERGasket,clutch cover; |
11009-1971 |
from US $11.29 |
||
|
11009A
|
11009A
11009-1535 GASKET,PUMP COVERGasket,pump cover; |
11009-1535 |
US $4.91 |
||
| replacement | |||||
|
11009A
|
11009A
11009-1972 GASKET,PUMP COVERGasket,pump cover; |
11009-1972 |
from US $5.39 |
||
|
11009B
|
11009B
11009-1536 GASKET,GENERATOR COVEGasket,generator cover; |
11009-1536 |
US $14.15 |
||
| replacement | |||||
|
11009B
|
11009B
11009-1974 GASKET,GENERATOR COVEGasket,generator cover; |
11009-1974 |
from US $12.83 |
||
|
13234
|
13234
13234-1068
SHAFT-COMP,PUMP
Shaft-comp,pump; |
13234-1068 |
— | ||
|
14031
|
14031
14031-1215 Cover-generator |
14031-1215 |
from US $28.87 |
||
| replacement | |||||
|
14031
|
14031
14031-0033 Cover-generator |
14031-0033 |
from US $29.71 |
||
|
14032
|
14032
14032-1238 COVER-CLUTCH |
14032-1238 |
US $220.45 |
||
| replacement | |||||
|
14032
|
14032
14032-1263 COVER-CLUTCH |
14032-1263 |
US $220.45 |
||
|
16115
|
16115
16115018 CAP-OIL FILLER |
16115018 |
from US $7.92 |
||
|
16142
|
16142
16142-1081 COVER-PUMP |
16142-1081 |
US $62.68 |
||
|
52005
|
52005
52005-1055 GAUGE,OIL LEVELGauge,oil level; |
52005-1055 |
from US $11.72 |
||
| replacement | |||||
|
52005
|
52005
52005-0019 GAUGE,OIL LEVELGauge,oil level; |
52005-0019 |
from US $11.16 |
||
|
59256
|
59256
59256-1064 IMPELLER |
59256-1064 |
from US $24.38 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1Washer,6.1x12x1; |
92022-077 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1380 WASHER,5.2X13X1Washer,5.2x13x1; |
92022-1380 |
from US $2.69 |
||
|
92045
|
92045
92045-1048 Bearing-ball,#608Bearing-ball,#608; |
92045-1048 |
US $6.73 |
||
| replacements | |||||
|
92045
|
92045
92045-1305 BEARING-BALLBearing-ball,#608; |
92045-1305 |
US $12.78 |
||
|
92045
|
92045
92045-1497 Bearing-Ball,608Mc3Bearing-ball,#608; |
92045-1497 |
from US $12.67 |
||
|
92049
|
92049
92049-002 OIL SEAL SB16244Seal-oil,sb16244; |
92049-002 |
from US $5.70 |
||
|
92049A
|
92049A
92049-1081
SEAL-OIL,MHSD8X18X10J
Seal-oil,a9567; |
92049-1081 |
— | ||
| replacement | |||||
|
92049A
|
92049A
92049-1366 SEAL-OIL,MHSD8X18X10JSeal-oil,a9567; |
92049-1366 |
from US $11.88 |
||
|
92049B
|
92049B
92049-1262 SEAL-OIL |
92049-1262 |
from US $3.96 |
||
|
130
|
130
130B0608
BOLT-FLANGED
Bolt-flanged,6x8; |
130B0608 |
— | ||
| replacements | |||||
|
130
|
130
130AA0608 BOLT-FLANGEDBolt-flanged,6x8; |
130AA0608 |
from US $1.05 |
||
|
130
|
130
130BA0608 BOLT-FLANGEDBolt-flanged,6x8; |
130BA0608 |
from US $1 |
||
|
130A
|
130A
130P0510 BOLT-FLANGED |
130P0510 |
from US $1.27 |
||
| replacement | |||||
|
130A
|
130A
130CA0510 BOLT-FLANGED |
130CA0510 |
from US $0.95 |
||
|
132
|
132
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
132A
|
132A
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132A
|
132A
92002-1609 BOLT |
92002-1609 |
from US $2.85 |
||
|
132A
|
132A
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8Roller,4x8; |
610A0408 |
from US $1.07 |
||
