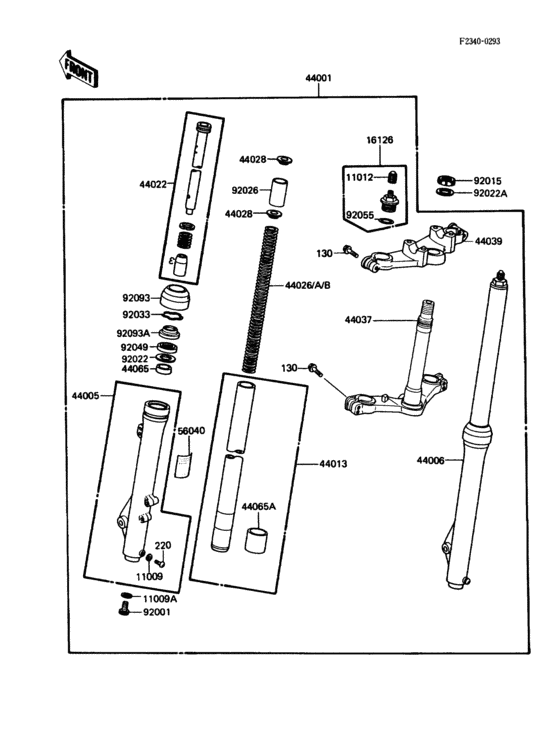

Front fork Diagram Kawasaki KX80 KX80
- Year
- 1988
- Colour
- 00
- Model code
- KX80-L1
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0835
BOLT-FLANGED,8X35
|
130G0835 |
— | ||
| replacements | |||||
|
130
|
130
130CA0835 BOLT-FLANGED |
130CA0835 |
from US $1.27 |
||
|
130
|
130
130BA0835 BOLT-FLANGED,8X35 |
130BA0835 |
from US $0.95 |
||
|
220
|
220
220B0408
SCREW-PAN-CROS
|
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
11009
|
11009
44045002 GASKET FORK DRAIN PLG |
44045002 |
from US $3.96 |
||
|
11009A
|
11009A
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
11012
|
11012
11012-1391 CAP,VALVE AIR |
11012-1391 |
from US $4.12 |
||
|
16126
|
16126
16126-1145 VALVE,AIR |
16126-1145 |
from US $49.21 |
||
|
44001
|
44001
44001-1667 FORK-FRONT |
44001-1667 |
US $938.38 |
||
|
44005
|
44005
44005-1263
PIPE-LEFT FORK OUTER
|
44005-1263 |
— | ||
|
44006
|
44006
44006-1260
PIPE-RIGHT FORK OUTER
|
44006-1260 |
— | ||
|
44013
|
44013
44013-1265 PIPE-FORK INNER |
44013-1265 |
US $204.61 |
||
|
44022
|
44022
44022-1212 CYLINDER-FORK |
44022-1212 |
from US $86.17 |
||
|
44026
|
44026
44026-1341 SPRING-FRONT FORK |
44026-1341 |
US $47.21 |
||
|
44026A
|
44026A
44026-1384 SPRING-FRONT FORK |
44026-1384 |
US $49.05 |
||
| replacement | |||||
|
44026A
|
44026A
44026-1320 SPRING-FRONT FORK |
44026-1320 |
US $49.05 |
||
|
44026B
|
44026B
44026-1355 SPRING-FRONT FORK |
44026-1355 |
US $31.52 |
||
|
44028
|
44028
44028-1004 GUIDE,FORK SPRING |
44028-1004 |
from US $8.93 |
||
|
44037
|
44037
44037-1225 Holder-fork under |
44037-1225 |
US $220.28 |
||
|
44039
|
44039
44039-1162 HOLDER-FORK UPPER |
44039-1162 |
US $133.72 |
||
|
44065
|
44065
44065-1065 Bushing-front fork |
44065-1065 |
US $11.03 |
||
| replacement | |||||
|
44065
|
44065
44065-1097 BUSHING-FRONT FORK |
44065-1097 |
US $17.27 |
||
|
44065A
|
44065A
44065-1075 BUSHING-FRONT FORK,IN |
44065-1075 |
from US $14.87 |
||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
|
56040-1120 |
— | ||
|
92001
|
92001
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
92015
|
92015
92015-1653
NUT,STEERING STEM,22M
|
92015-1653 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-1521 NUT,STEERING STEM,22M |
92210-1521 |
from US $10.30 |
||
|
92022
|
92022
92022-1801 WASHER |
92022-1801 |
from US $5.45 |
||
|
92022A
|
92022A
92022-1873 WASHER |
92022-1873 |
from US $4.75 |
||
|
92026
|
92026
92026-1311 SPACER |
92026-1311 |
US $14.35 |
||
|
92033
|
92033
44044015 RING-SNAP,FORK OIL |
44044015 |
from US $9.58 |
||
| replacement | |||||
|
92033
|
92033
92033-1100 RING-SNAP,FORK OIL |
92033-1100 |
from US $7.46 |
||
|
92049
|
92049
92049-1252 SEAL-OIL,FORK |
92049-1252 |
from US $22.14 |
||
|
92055
|
92055
92055-1318 O RING,26MM |
92055-1318 |
US $3.94 |
||
| replacement | |||||
|
92055
|
92055
670B3026 O RING,26MM |
670B3026 |
from US $3.01 |
||
|
92093
|
92093
92093-1202 SEAL,FORK |
92093-1202 |
from US $14.87 |
||
|
92093A
|
92093A
92093-1250 SEAL,FORK OUTER TUBE |
92093-1250 |
from US $13.86 |
||
