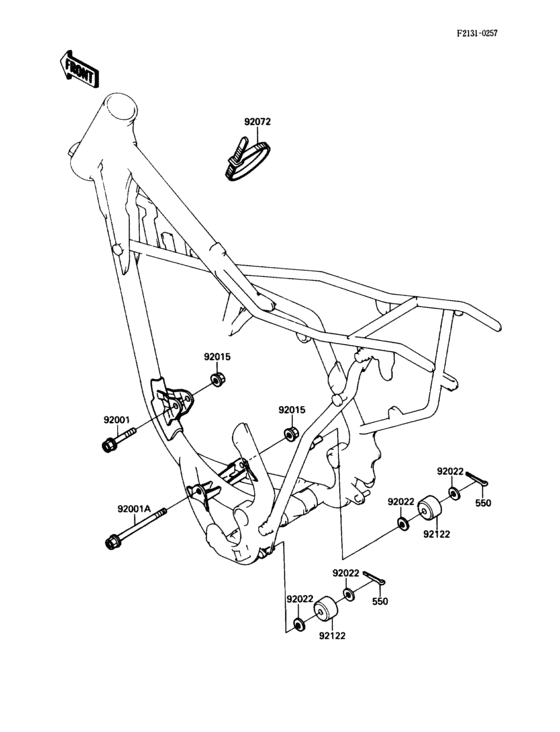

Frame fittings Diagram Kawasaki KX80 KX80
- Year
- 1988
- Model code
- KX80-L1
- Sales region
- USA
- Engine Capacity
- 80
- Frame
- JKAKXWL1 JA000001 - JA003000
- Model
- KX80-L
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA2515 PIN-COTTER,2.5X15 |
550AA2515 |
from US $0.78 |
||
|
92001
|
92001
92002-1215 BOLT,HEX HEAD 8X63 |
92002-1215 |
from US $4.75 |
||
|
92001A
|
92001A
92001-1367 BOLT,ENGINE MOUNT |
92001-1367 |
US $6.02 |
||
|
92015
|
92015
92015-1143 NUT-8MM |
92015-1143 |
from US $0.99 |
||
|
92022
|
92022
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.53 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92122
|
92122
92122-1155 ROLLER,CHAIN GUIDE |
92122-1155 |
from US $15.43 |
