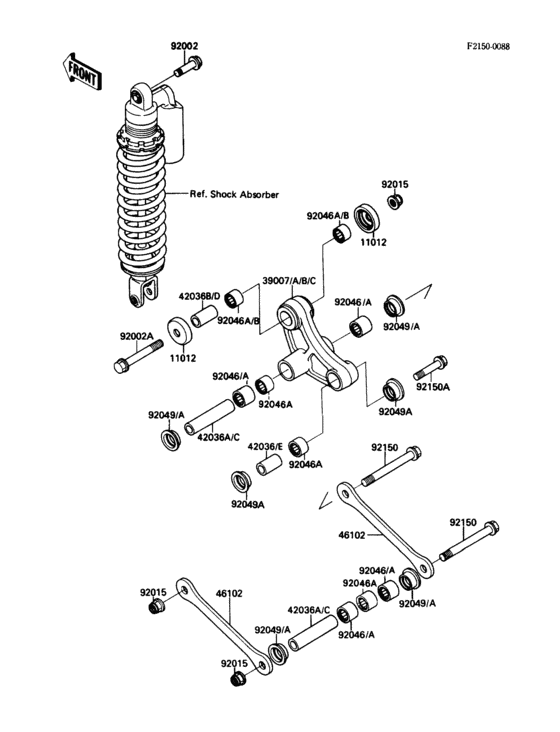

Rear suspension Diagram Kawasaki KX80 KX80
- Year
- 1990
- Model code
- KX80-L3
- Sales region
- USA
- Engine Capacity
- 80
- Frame
- JKAKXWL1 LA008001 - 999999
- Model
- KX80-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1666 CAP,SUSPENSION ARM |
11012-1666 |
from US $14.06 |
||
|
39007B
|
39007B
39007-1176 ARM-SUSP,UNI TRAK |
39007-1176 |
from US $197.12 |
||
|
42036C
|
42036C
42036-1256 SLEEVE,12X18X74 |
42036-1256 |
from US $18.85 |
||
|
42036D
|
42036D
42036-1257 SLEEVE,12X18X36 |
42036-1257 |
from US $18.85 |
||
|
42036E
|
42036E
42036-1258 SLEEVE,10.1X18X30 |
42036-1258 |
from US $8.87 |
||
|
46102
|
46102
46102-1251 ROD,SUSPENSION |
46102-1251 |
from US $14.06 |
||
|
92002
|
92002
92150-1711 BOLT |
92150-1711 |
from US $7.60 |
||
|
92002A
|
92002A
92002-1861 BOLT,FLANGED,12X67 |
92002-1861 |
from US $7.44 |
||
|
92015
|
92015
92015-1617 NUT,LOCK,12MM |
92015-1617 |
from US $6.02 |
||
|
92046A
|
92046A
92046-1144 BEARING-NEEDLE,18BM24 |
92046-1144 |
from US $22.29 |
||
|
92049A
|
92049A
92049-1328 SEAL-OIL |
92049-1328 |
from US $19.17 |
||
|
92150
|
92150
92150-1169 BOLT,FLANGED,12X104 |
92150-1169 |
from US $10.33 |
||
|
92150A
|
92150A
92150-1170 BOLT,FLANGED,10X49 |
92150-1170 |
from US $4.44 |
