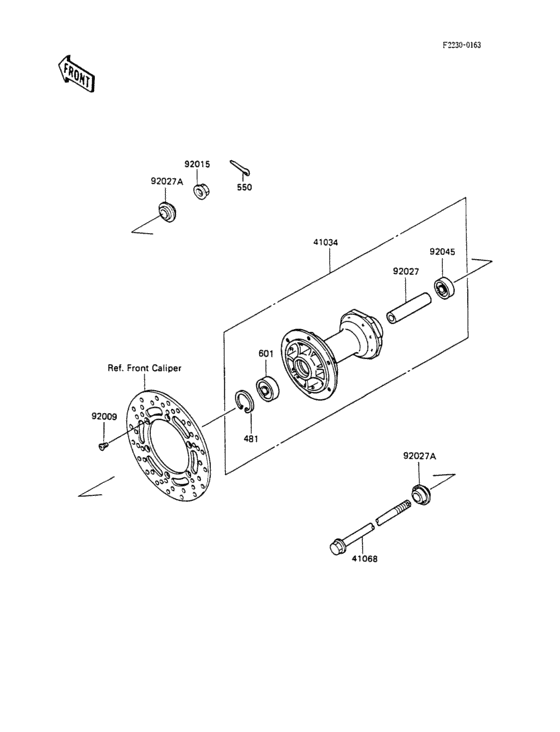

Front hub Diagram Kawasaki KX80 KX80
- Year
- 1990
- Model code
- KX80-M3
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Frame
- KX080M 002501 - 999999
- Model
- KX80-M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
481
|
481
481J3700 CIRCLIP.37MM |
481J3700 |
from US $1.58 |
||
|
550
|
550
550AA2520 PIN-COTTER,2.5X20 |
550AA2520 |
from US $0.63 |
||
|
601
|
601
601B6301UU BEARING-BALL,#6301UUC |
601B6301UU |
from US $20.75 |
||
|
41034
|
41034
41034-1166 DRUM-ASSY,FRONT BRAKE |
41034-1166 |
from US $232.16 |
||
|
41068
|
41068
41068-1301 AXLE,FR |
41068-1301 |
from US $31.70 |
||
|
92009
|
92009
92009-1375 SCREW,6X10 |
92009-1375 |
from US $2.53 |
||
|
92015
|
92015
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92027
|
92027
92027-1925 COLLAR,L=81 |
92027-1925 |
US $16.95 |
||
|
92027A
|
92027A
92027-1926 COLLAR,L=6 |
92027-1926 |
US $11.72 |
||
|
92045
|
92045
92045-1062 BEARING-BALL,TMB201LL |
92045-1062 |
from US $21.23 |
