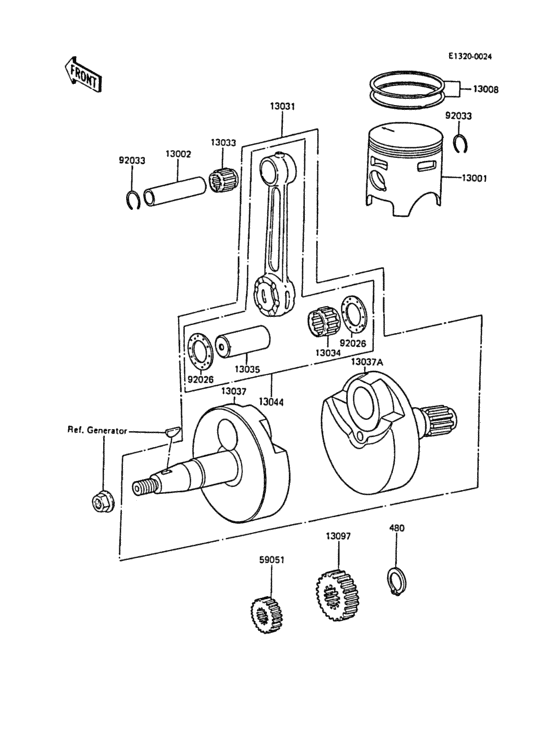

Crankshaft/piston(s) Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1988
- Colour
- 00
- Model code
- KX80-N1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J1600 CIRCLIP 16MM |
480J1600 |
from US $1.43 |
||
|
13001
|
13001
13001-1259
PISTON-ENGINE
|
13001-1259 |
— | ||
|
13002
|
13002
13002-1024 PIN-PISTON |
13002-1024 |
US $13.34 |
||
| replacement | |||||
|
13002
|
13002
13002-1079 PIN-PISTON |
13002-1079 |
from US $12.36 |
||
|
13008
|
13008
13008-1100
RING-SET-PISTON
|
13008-1100 |
— | ||
|
13031
|
13031
13031-1207
Crankshaft-comp
|
13031-1207 |
— | ||
| replacement | |||||
|
13031
|
13031
13031-1284
Crankshaft-comp
|
13031-1284 |
— | ||
|
13033
|
13033
13033-1053
BEARING-SMALL END
|
13033-1053 |
— | ||
| replacement | |||||
|
13033
|
13033
13033-1060 BEARING-SMALL END |
13033-1060 |
from US $18.37 |
||
|
13034
|
13034
13034-1072 BEARING-BIG END,H22X2 |
13034-1072 |
from US $50.90 |
||
|
13035
|
13035
13035-1054
PIN-CRANK
|
13035-1054 |
— | ||
| replacement | |||||
|
13035
|
13035
13035-1054-01 PIN-CRANK |
13035-1054-01 |
from US $21.69 |
||
|
13037
|
13037
13037-1269 CRANKSHAFT,LH |
13037-1269 |
US $129.65 |
||
|
13037A
|
13037A
13037-1270
CRANKSHAFT,RH
|
13037-1270 |
— | ||
|
13044
|
13044
13044-5053
SET-CONNECTING ROD
|
13044-5053 |
— | ||
|
13097
|
13097
13097-1148 GEAR-PRIMARY SPUR,20T |
13097-1148 |
from US $53.56 |
||
|
59051
|
59051
59051-1146 GEAR-SPUR,PUMP,23T |
59051-1146 |
from US $20.28 |
||
|
92026
|
92026
92026-011 WASHER SIDE |
92026-011 |
from US $6.81 |
||
|
92033
|
92033
92033-1050
RING-SNAP
|
92033-1050 |
— | ||
| replacement | |||||
|
92033
|
92033
92033-0005 RING-SNAP |
92033-0005 |
from US $1.27 |
||
