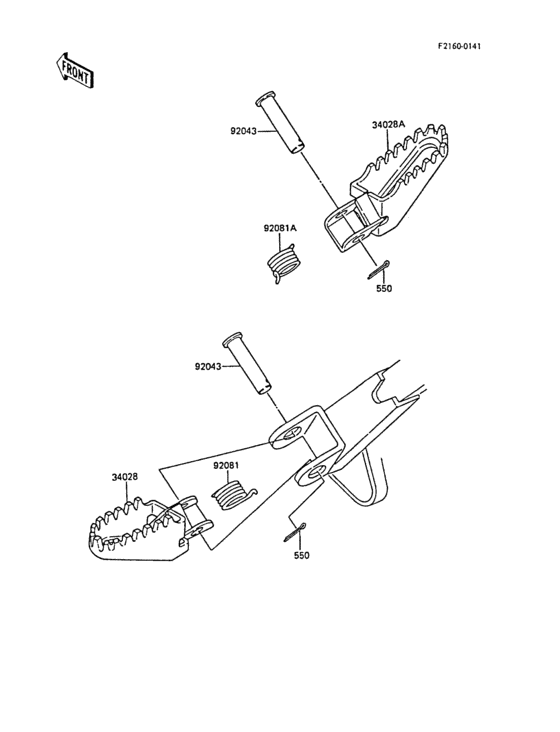

Footrests Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1988
- Colour
- 00
- Model code
- KX80-N1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D2515 PIN-COTTER,2.5X15 |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2515 PIN-COTTER,2.5X15 |
550AA2515 |
from US $0.78 |
||
|
34028
|
34028
34028-1247 STEP,LH |
34028-1247 |
US $25.31 |
||
|
34028A
|
34028A
34028-1248 STEP,RH |
34028-1248 |
US $29.86 |
||
|
92043
|
92043
92043-1143 PIN,8X32 |
92043-1143 |
from US $7.44 |
||
|
92081
|
92081
92081-1491 SPRING,FOOTREST |
92081-1491 |
from US $3.96 |
||
|
92081A
|
92081A
92081-1543 SPRING,FOOTREST,RH |
92081-1543 |
from US $3.96 |
||
