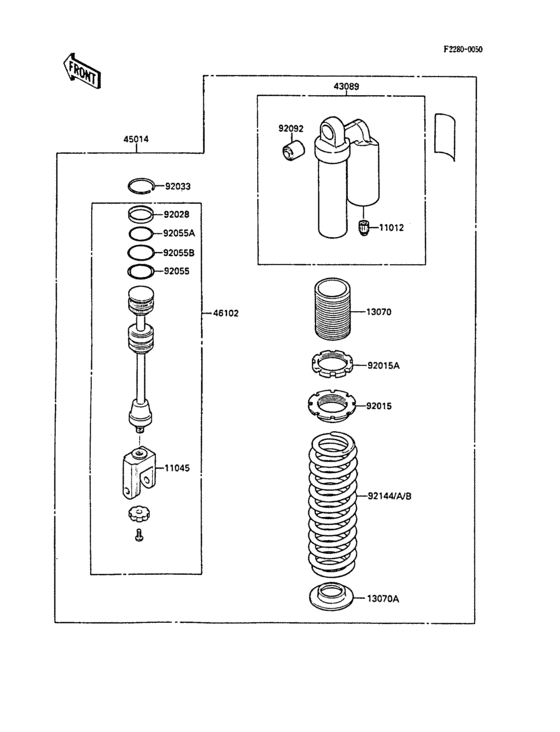

Shock absorber(s) Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1988
- Colour
- 00
- Model code
- KX80-N1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1391 CAP,VALVE AIR |
11012-1391 |
from US $4.12 |
||
|
11045
|
11045
11045-1409 BRACKET |
11045-1409 |
from US $63.65 |
||
|
13070
|
13070
13070-1184 GUIDE |
13070-1184 |
US $23.81 |
||
|
13070A
|
13070A
13070-1193 GUIDE,SPRING |
13070-1193 |
from US $25.79 |
||
|
43089
|
43089
43089-1124 CYLINDER-SHOCKABSORBE |
43089-1124 |
US $330.30 |
||
|
45014
|
45014
45014-1382 Shock Absorber |
45014-1382 |
US $911.72 |
||
|
46102
|
46102
46102-1231 ROD,SHOCKABSORBER |
46102-1231 |
US $490.61 |
||
|
92015
|
92015
92015-1679 NUT,SPRING ADJUST |
92015-1679 |
from US $20.94 |
||
|
92015A
|
92015A
92015-1713 NUT |
92015-1713 |
from US $20.94 |
||
|
92028
|
92028
92028-1412 BUSHING |
92028-1412 |
from US $16.61 |
||
|
92033
|
92033
92033-1211 RING-SNAP |
92033-1211 |
from US $2.69 |
||
|
92055
|
92055
92055-1334 RING-O |
92055-1334 |
from US $3.96 |
||
|
92055A
|
92055A
92055-1335 RING-O |
92055-1335 |
from US $4.77 |
||
|
92055B
|
92055B
92055-1336 RING-O |
92055-1336 |
from US $4.77 |
||
|
92092
|
92092
92092-1016 BUSHING-RUBBER,SHOCKA |
92092-1016 |
from US $18.06 |
||
|
92144
|
92144
92144-1208 SPRING,SHOCKABSORBER, |
92144-1208 |
US $205.88 |
||
|
92144A
|
92144A
92144-1296 SPRING,SHOCKABSORBER, |
92144-1296 |
US $232.54 |
||
|
92144B
|
92144B
92144-1297 SPRING,SHOCKABSORBER, |
92144-1297 |
US $233.03 |
||
| replacement | |||||
|
92144B
|
92144B
92144-1471 SPRING,SHOCKABSORBER, |
92144-1471 |
US $242.32 |
||
