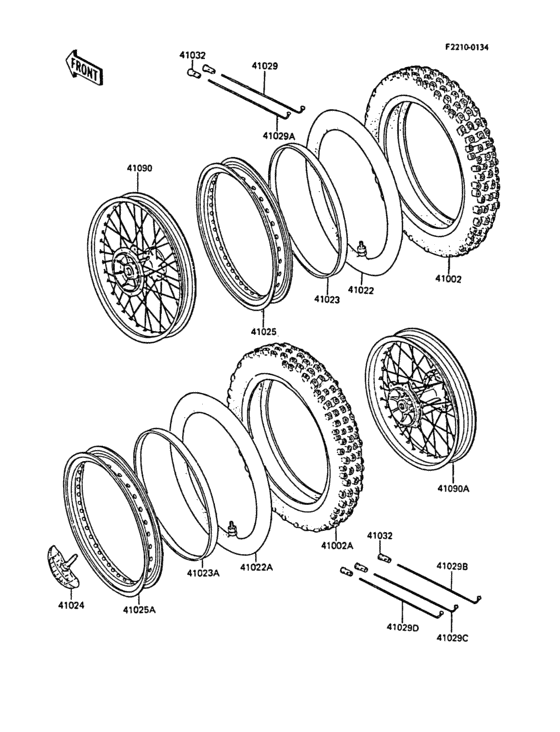

Tires Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1988
- Colour
- 00
- Model code
- KX80-N1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41002
|
41002
41002-1571 TIRE,FR,70/100-19 42M |
41002-1571 |
US $103.05 |
||
| replacement | |||||
|
41002
|
41002
41002-1878 TIRE,FR,70/100-19 42M |
41002-1878 |
US $132.82 |
||
|
41002A
|
41002A
41002-1572 TIRE,RR,90/100-16 52M |
41002-1572 |
US $119.63 |
||
| replacement | |||||
|
41002A
|
41002A
41002-1879 TIRE,RR,90/100-16 52M |
41002-1879 |
US $151.85 |
||
|
41022
|
41022
41022-1121 TUBE-TIRE,FR,70/100-1 |
41022-1121 |
from US $46.08 |
||
|
41022A
|
41022A
41022-1122 TUBE-TIRE,RR,90/100-1 |
41022-1122 |
from US $46.08 |
||
|
41023
|
41023
41023-1071 BAND-RIM |
41023-1071 |
US $11.97 |
||
| replacement | |||||
|
41023
|
41023
41023-1074 BAND-RIM |
41023-1074 |
from US $9.19 |
||
|
41023A
|
41023A
41023-1072 BAND-RIM,RR,90/100-16 |
41023-1072 |
from US $9.19 |
||
|
41024
|
41024
41024010 PROTECTOR,BEAD 1.60A |
41024010 |
from US $57.85 |
||
|
41025
|
41025
41025-1187
RIM,FR,1.40X19EN22J
|
41025-1187 |
— | ||
| replacement | |||||
|
41025
|
41025
41025-1217 RIM,FR,1.40X19EN22J |
41025-1217 |
US $360.10 |
||
|
41025A
|
41025A
41025-1188 RIM,RR,1.85X16EN22-J |
41025-1188 |
US $373.16 |
||
|
41029
|
41029
41029-1148 SPOKE-INNER,FR |
41029-1148 |
from US $3.64 |
||
|
41029A
|
41029A
41029-1149 SPOKE-INNER,FR |
41029-1149 |
from US $3.64 |
||
|
41029B
|
41029B
41029-1151 SPOKE-INNER,RR,LH |
41029-1151 |
from US $3.64 |
||
|
41029C
|
41029C
41029-1181 SPOKE-INNER,RR,RH,178 |
41029-1181 |
from US $3.64 |
||
|
41029D
|
41029D
41029-1182 SPOKE-INNER,RR,RH,175 |
41029-1182 |
from US $3.64 |
||
|
41032
|
41032
41032-1057 NIPPLE-SPOKE |
41032-1057 |
from US $1.68 |
||
|
41090
|
41090
41090-1060 WHEEL-SUB ASSY,FR |
41090-1060 |
US $802.53 |
||
|
41090A
|
41090A
41090-1061 WHEEL-SUB ASSY,RR |
41090-1061 |
US $756.47 |
||
