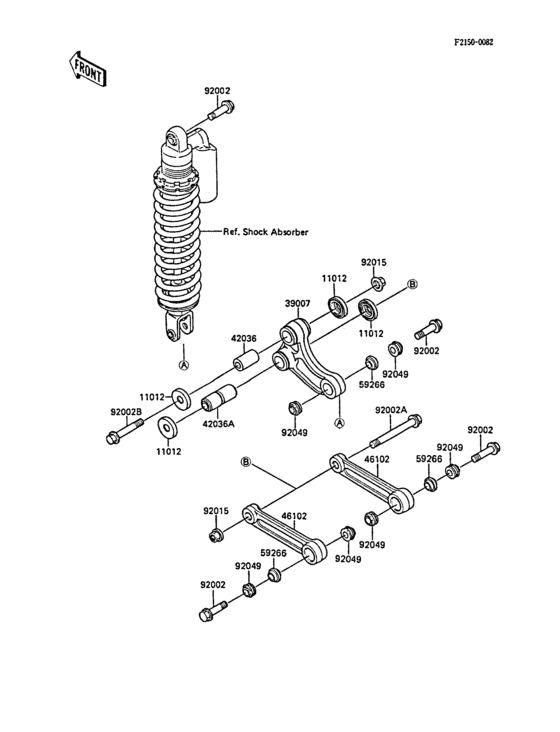

Suspension Diagram Kawasaki KX80 KX80
- Year
- 1988
- Colour
- 00
- Model code
- KX80-P1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80-P
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1541 CAP,ARM |
11012-1541 |
from US $12.31 |
||
|
39007
|
39007
39007-1157 ARM-SUSP,UNI TRAK |
39007-1157 |
US $183.55 |
||
|
42036
|
42036
42036-1191 SLEEVE,SUSPENSION ARM |
42036-1191 |
from US $77.35 |
||
|
42036A
|
42036A
42036-1192 SLEEVE,SUSPENSION ARM |
42036-1192 |
from US $104.53 |
||
|
46102
|
46102
46102-1216 ROD,SUSPENSION |
46102-1216 |
from US $44.24 |
||
|
59266
|
59266
59266-1061 JOINT-BALL |
59266-1061 |
from US $75.01 |
||
|
92002
|
92002
92002-1675 BOLT |
92002-1675 |
US $10.60 |
||
| replacement | |||||
|
92002
|
92002
92150-1711 BOLT |
92150-1711 |
from US $7.60 |
||
|
92002A
|
92002A
92002-1802 BOLT,FLANGED,12X94 |
92002-1802 |
from US $8.69 |
||
|
92002B
|
92002B
92002-1861 BOLT,FLANGED,12X67 |
92002-1861 |
from US $7.44 |
||
|
92015
|
92015
92015-1617 NUT,LOCK,12MM |
92015-1617 |
from US $6.02 |
||
|
92049
|
92049
92049-1233 SEAL-OIL,XHM10217J-A |
92049-1233 |
from US $17.08 |
||
