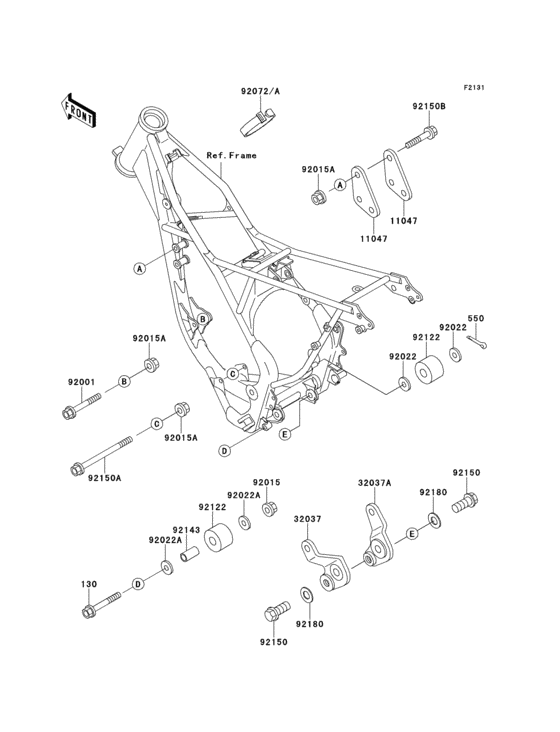

Frame fittings Diagram Kawasaki KX80 KX80
- Year
- 1997
- Colour
- Lime Green (7F)
- Model code
- KX80-R7
- Sales region
- Australia
- Engine Capacity
- 80
- Model
- KX80-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0860 BOLT-FLANGED |
130G0860 |
from US $1.24 |
||
| replacement | |||||
|
130
|
130
130BA0860 BOLT-FLANGED |
130BA0860 |
from US $1.56 |
||
|
550
|
550
550D2515 PIN-COTTER,2.5X15 |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2515 PIN-COTTER,2.5X15 |
550AA2515 |
from US $0.78 |
||
|
11047
|
11047
11047-1099 BRACKET,ENGINE |
11047-1099 |
US $17.11 |
||
|
32037
|
32037
32037-1552 BRACKET-SHOCKABSORBER |
32037-1552 |
from US $32.31 |
||
|
32037A
|
32037A
32037-1553 BRACKET-SHOCKABSORBER |
32037-1553 |
from US $32.31 |
||
|
92001
|
92001
92001-1006 BOLT,HEX HEAD 8X63 |
92001-1006 |
from US $4.28 |
||
| replacement | |||||
|
92001
|
92001
92002-1215 BOLT,HEX HEAD 8X63 |
92002-1215 |
from US $4.75 |
||
|
92015
|
92015
92015-1143 NUT-8MM |
92015-1143 |
from US $0.99 |
||
|
92015A
|
92015A
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-107 WASHER,12.5X24X1.2 |
92022-107 |
from US $1.90 |
||
|
92022A
|
92022A
92022-1561 WASHER,8.5X20X1.6 |
92022-1561 |
from US $2.69 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92122
|
92122
92122-1179 ROLLER,CHAIN GUIDE |
92122-1179 |
from US $12.04 |
||
|
92143
|
92143
92143-1432 COLLAR,9.5X12.7X25 |
92143-1432 |
from US $4.12 |
||
|
92150
|
92150
92150-1359 BOLT,FLANGED,12X30 |
92150-1359 |
from US $5.07 |
||
|
92150A
|
92150A
92150-1482 BOLT |
92150-1482 |
from US $6.34 |
||
|
92150B
|
92150B
92150-1487 BOLT |
92150-1487 |
from US $3.80 |
||
|
92180
|
92180
92180-1060 SHIM,12.5X24X0.5 |
92180-1060 |
from US $2.69 |
||
