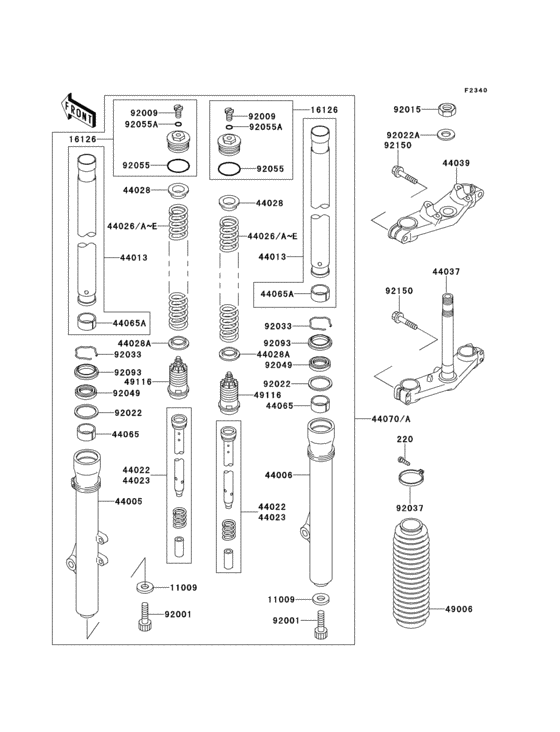

Front fork(kx80-r6/r7) Diagram Kawasaki KX80 KX80
- Year
- 1997
- Colour
- Lime Green (7F)
- Model code
- KX80-R7
- Sales region
- Australia
- Engine Capacity
- 80
- Model
- KX80-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220C0416
SCREW-PAN-CROSS
|
220C0416 |
— | ||
| replacement | |||||
|
220
|
220
220AB0416 SCREW-PAN-CROSS |
220AB0416 |
from US $0.95 |
||
|
11009
|
11009
11009-1127 GASKET,FORK CYLINDER |
11009-1127 |
from US $3.80 |
||
|
16126
|
16126
16126-1265 VALVE,AIR |
16126-1265 |
from US $44.68 |
||
|
44005
|
44005
44005-1314 PIPE-LEFT FORK OUTER |
44005-1314 |
from US $233.77 |
||
|
44006
|
44006
44006-1311 PIPE-RIGHT FORK OUTER |
44006-1311 |
from US $233.77 |
||
|
44013
|
44013
44013-1360 PIPE-FORK INNER |
44013-1360 |
from US $233.77 |
||
|
44023
|
44023
44023-1108 CYLINDER-COMP-FORK |
44023-1108 |
from US $81.20 |
||
|
44026C
|
44026C
44026-1630 SPRING-FRONT FORK |
44026-1630 |
from US $47.81 |
||
|
44026D
|
44026D
44026-1631 SPRING-FRONT FORK |
44026-1631 |
from US $45.25 |
||
|
44026E
|
44026E
44026-1632 SPRING-FRONT FORK |
44026-1632 |
from US $47.81 |
||
|
44028
|
44028
44028-1059 GUIDE-FORK SPRING |
44028-1059 |
from US $6.82 |
||
|
44028A
|
44028A
44028-1068 GUIDE-FORK SPRING |
44028-1068 |
from US $6.82 |
||
|
44037
|
44037
44037-1293 Holder-fork under |
44037-1293 |
from US $356.51 |
||
|
44039
|
44039
44039-1220 HOLDER-FORK UPPER |
44039-1220 |
from US $154.30 |
||
|
44065
|
44065
44065-1106 BUSHING-FRONT FORK |
44065-1106 |
from US $14.57 |
||
|
44065A
|
44065A
44065-1107 BUSHING-FRONT FORK,IN |
44065-1107 |
from US $14.99 |
||
|
44070A
|
44070A
44070-1545 DAMPER-ASSY,FORK |
44070-1545 |
from US $917.66 |
||
|
49006
|
49006
49006-1273-VW
BOOT,FORK,VIOLET
|
49006-1273-VW |
— | ||
|
49116
|
49116
49116-1098 VALVE-ASSY,FORK |
49116-1098 |
from US $115.72 |
||
|
92001
|
92001
92001-1309 BOLT,FORK CYLINDER |
92001-1309 |
from US $4.59 |
||
|
92009
|
92009
92009-1568 SCREW |
92009-1568 |
from US $3.96 |
||
|
92015
|
92015
92015-1653
NUT,STEERING STEM,22M
|
92015-1653 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-1521 NUT,STEERING STEM,22M |
92210-1521 |
from US $10.30 |
||
|
92022
|
92022
92022-1242 WASHER,FORK OUT PIPE |
92022-1242 |
US $5.63 |
||
| replacement | |||||
|
92022
|
92022
92022-1262 WASHER,FORK OUT PIPE |
92022-1262 |
from US $5.07 |
||
|
92022A
|
92022A
92022-1873 WASHER |
92022-1873 |
from US $4.75 |
||
|
92033
|
92033
92033-1047 SNAP RING,FORK OUTER |
92033-1047 |
from US $3.80 |
||
|
92037
|
92037
92037-1321 CLAMP, BOOT, BLACK |
92037-1321 |
US $8.71 |
||
|
92049
|
92049
92049-1180 SEAL-OIL,FRONT FORK |
92049-1180 |
from US $15.05 |
||
|
92055
|
92055
92055-1050 0 RING,FORK TOP CAP |
92055-1050 |
from US $3.48 |
||
|
92055A
|
92055A
92055-1441 O RING,3MM |
92055-1441 |
US $2.85 |
||
| replacement | |||||
|
92055A
|
92055A
670B1503 O RING,3MM |
670B1503 |
from US $2.85 |
||
|
92093
|
92093
92093-1166 SEAL,FRONT FORK |
92093-1166 |
from US $12.67 |
||
|
92150
|
92150
92150-1499 BOLT |
92150-1499 |
from US $3.48 |
||
