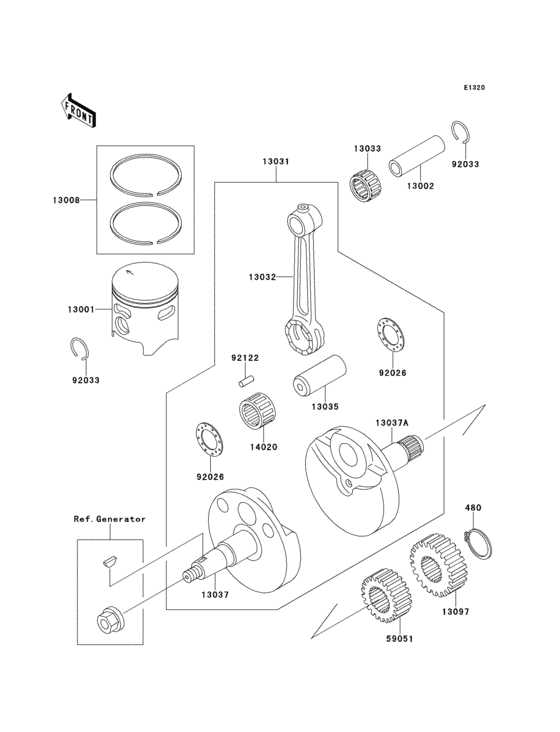

Crankshaft/piston Diagram Kawasaki KX80 KX80
- Year
- 1992
- Model code
- KX80-S2
- Sales region
- Europe
- Engine Capacity
- 80
- Frame
- KX080S 002001 - 004000
- Model
- KX80-S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J1600 CIRCLIP 16MM |
480J1600 |
from US $1.43 |
||
|
13001
|
13001
13001-1309
Piston-engine
|
13001-1309 |
— | ||
|
13002
|
13002
13002-1079 PIN-PISTON |
13002-1079 |
from US $12.36 |
||
|
13008
|
13008
13008-1106
Ring-set-piston
|
13008-1106 |
— | ||
|
13031
|
13031
13031-1313
Crankshaft-comp
|
13031-1313 |
— | ||
|
13032
|
13032
13032-1039 Rod-connecting |
13032-1039 |
from US $61.78 |
||
|
13033
|
13033
13033-1060 BEARING-SMALL END |
13033-1060 |
from US $18.37 |
||
|
13035
|
13035
13035-1054-01 PIN-CRANK |
13035-1054-01 |
from US $21.69 |
||
|
13037
|
13037
13037-1396
CRANKSHAFT,LH
|
13037-1396 |
— | ||
|
13037A
|
13037A
13037-1397
CRANKSHAFT,RH
|
13037-1397 |
— | ||
|
13097
|
13097
13097-1148 GEAR-PRIMARY SPUR,20T |
13097-1148 |
from US $53.56 |
||
|
14020
|
14020
14020-1076 RETAINER |
14020-1076 |
US $43.08 |
||
|
59051
|
59051
59051-1146 GEAR-SPUR,PUMP,23T |
59051-1146 |
from US $20.28 |
||
|
92026
|
92026
92026-1136 SPACER,22.2X37X1.0 |
92026-1136 |
from US $5.54 |
||
|
92033
|
92033
92033-0005 RING-SNAP |
92033-0005 |
from US $1.27 |
||
|
92122
|
92122
92122-1177 ROLLER |
92122-1177 |
from US $2.21 |
