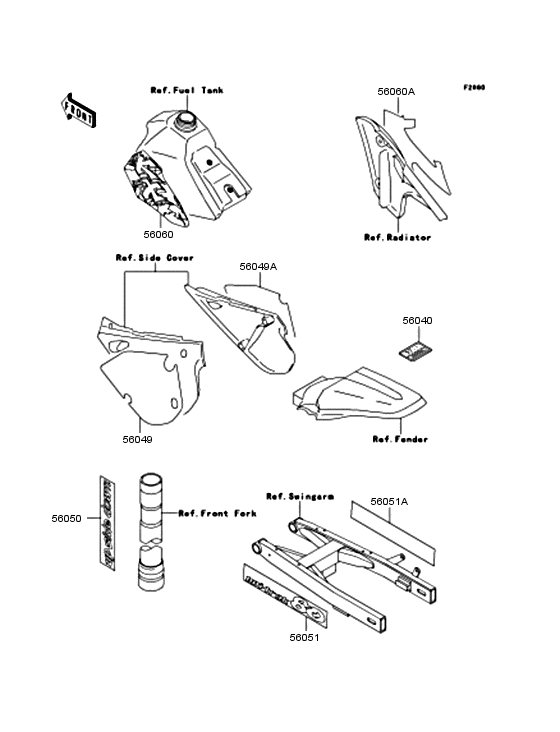

Label (KX80-S4/V4) Diagram Kawasaki KX80 KX80
- Year
- 1994
- Colour
- Lime Green (7F)
- Model code
- KX80-V4
- Sales region
- Japan
- Engine Capacity
- 80
- Frame
- KX080V 007001 - 008000
- Engine
- KX080SE 000001 -
- Model
- KX80-V
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56040
|
56040
56040-1129
LABEL-WARNING,GASOLIN
ラベル(ワ-ニング)，ガソリン/オイル |
56040-1129 |
— | ||
|
56049
|
56049
56049-1707
PATTERN,SIDE COVER,LH
パタ-ン，サイド カバ-，LH |
56049-1707 |
— | ||
|
56049A
|
56049A
56049-1708
PATTERN,SIDE COVER,RH
パタ-ン，サイド カバ-，RH |
56049-1708 |
— | ||
|
56050
|
56050
56050-1729 MARK,UPSIDEマ-ク，アツプサイド ダウン |
56050-1729 |
US $20.28 |
||
|
56051
|
56051
56051-1030 MARK,SWING ARM,LH,UNIマ-ク，スイング ア-ム，LH，UNI-TRAK 80 |
56051-1030 |
from US $20.30 |
||
|
56051A
|
56051A
56051-1031 MARK,SWING ARM,RH,80マ-ク，スイング ア-ム，RH，80 UNI-TRAK |
56051-1031 |
from US $20.30 |
||
|
56060
|
56060
56060-1720 Pattern,fuel tank,lhパタ-ン，フユ-エル タンク，LH |
56060-1720 |
from US $67.07 |
||
|
56060A
|
56060A
56060-1721 PATTERN,SHROUD,RHパタ-ン，シユラウド，RH; KX80-S5/V5 |
56060-1721 |
from US $67.07 |
