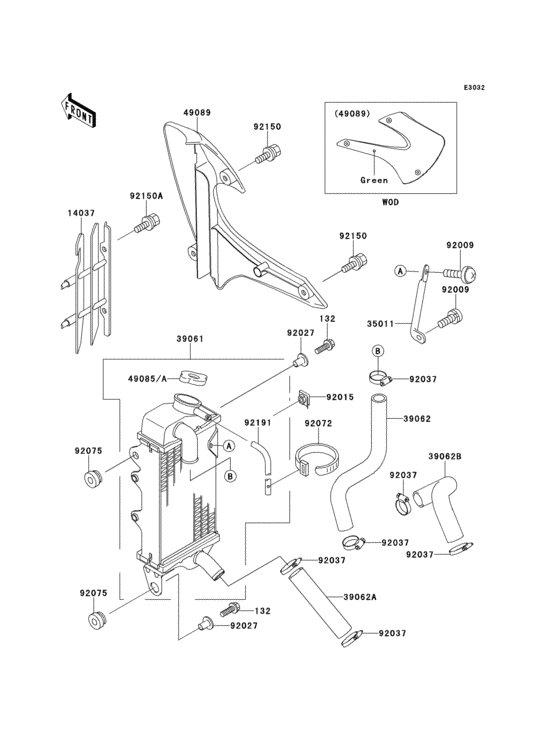

Radiator Diagram Kawasaki KX80 KX80
- Year
- 1998
- Colour
- Lime Green (7F)
- Model code
- KX80-W1
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 BOLT |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
14037
|
14037
14037-1249-RZ SCREEN,RADIATOR,WHITE |
14037-1249-RZ |
from US $26.33 |
||
|
35011
|
35011
35011-1845 STAY |
35011-1845 |
from US $11.16 |
||
|
39061
|
39061
39061-1245 Radiator-assy |
39061-1245 |
from US $348.48 |
||
|
39062
|
39062
39062-1425 HOSE-COOLING,HEAD-RAD |
39062-1425 |
from US $23.19 |
||
|
39062A
|
39062A
39062-1711 HOSE-COOLING,RADIATOR |
39062-1711 |
from US $10.77 |
||
|
39062B
|
39062B
39062-1712 HOSE-COOLING,CYLINDER |
39062-1712 |
from US $17.11 |
||
|
49085
|
49085
49085-1070 CAP-ASSY-PRESSURE |
49085-1070 |
from US $34.56 |
||
|
49085A
|
49085A
49085-1073 CAP-ASSY-PRESSURE |
49085-1073 |
from US $34.56 |
||
|
49089
|
49089
49089-1139-6W SHROUD-ENGINE,RH,L.GR |
49089-1139-6W |
US $35.16 |
||
|
92009
|
92009
92009-1661 SCREW |
92009-1661 |
from US $2.69 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92027
|
92027
92027-1183 COLLAR |
92027-1183 |
from US $4.09 |
||
|
92037
|
92037
92037-1589 CLAMP,COOLING HOSE |
92037-1589 |
from US $12.04 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.01 |
||
|
92075
|
92075
92075-1352 DAMPER,RADIATOR |
92075-1352 |
from US $3.80 |
||
|
92150
|
92150
92150-1340
BOLT,6X14
|
92150-1340 |
— | ||
| replacement | |||||
|
92150
|
92150
92150-1505 BOLT |
92150-1505 |
from US $3.01 |
||
|
92150A
|
92150A
92150-1435 BOLT |
92150-1435 |
from US $2.69 |
||
|
92191
|
92191
92191-1211 TUBE,6X9X700 |
92191-1211 |
from US $6.38 |
||
