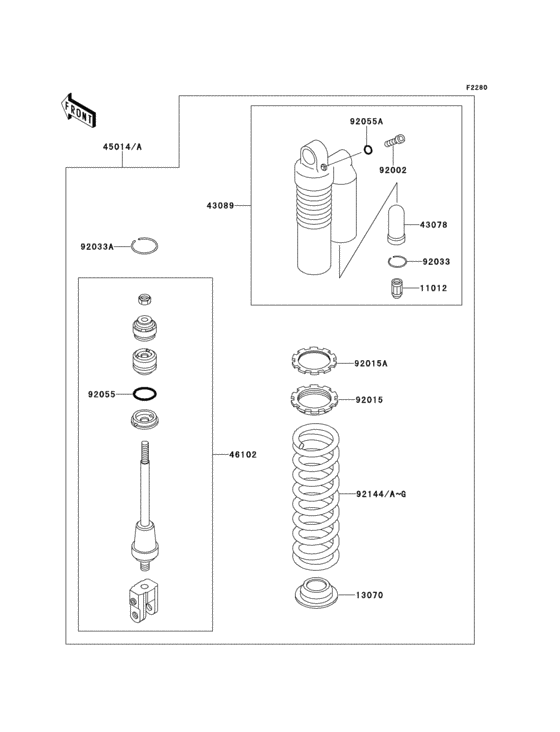

Shock absorber(s) Diagram Kawasaki KX80 KX80
- Year
- 1998
- Colour
- Lime Green (7F)
- Model code
- KX80-W1
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1391 CAP,VALVE AIR |
11012-1391 |
from US $4.12 |
||
|
13070
|
13070
13070-1233 GUIDE,SPRING |
13070-1233 |
from US $23.04 |
||
|
43078
|
43078
43078-1112 RESERVOIR,SHOCKABSORB |
43078-1112 |
from US $58.19 |
||
|
43089
|
43089
43089-1162 CYLINDER-SHOCKABSORBE |
43089-1162 |
from US $418.18 |
||
|
45014
|
45014
45014-1662-45 SHOCK ABSORBER,J.S.VIO |
45014-1662-45 |
from US $853.78 |
||
|
46102
|
46102
46102-1411 ROD,SHOCKABSORBER |
46102-1411 |
from US $524.17 |
||
|
92002
|
92002
92002-1955 BOLT |
92002-1955 |
from US $7.13 |
||
|
92015
|
92015
92015-1679 NUT,SPRING ADJUST |
92015-1679 |
from US $20.94 |
||
|
92015A
|
92015A
92015-1713 NUT |
92015-1713 |
from US $20.94 |
||
|
92033
|
92033
92033-1091 RING-SNAP,REARSHOCK |
92033-1091 |
from US $3.01 |
||
|
92033A
|
92033A
92033-1211 RING-SNAP |
92033-1211 |
from US $2.69 |
||
|
92055
|
92055
92055-1334 RING-O |
92055-1334 |
from US $3.96 |
||
|
92055A
|
92055A
92055-1383 O RING,4MM |
92055-1383 |
US $2.97 |
||
| replacement | |||||
|
92055A
|
92055A
670B1504 O RING,4MM |
670B1504 |
from US $2.53 |
||
|
92144
|
92144
92144-1487-45 SPRING,SHOCKABSORBER, |
92144-1487-45 |
US $294.05 |
||
| replacement | |||||
|
92144
|
92144
92145-1371-45 SPRING,SHOCKABSORBER, |
92145-1371-45 |
US $294.05 |
||
|
92144B
|
92144B
92144-1570-45 SPRING,SHOCKABSORBER, |
92144-1570-45 |
from US $277.33 |
||
|
92144D
|
92144D
92144-1571-45 SPRING,SHOCKABSORBER, |
92144-1571-45 |
from US $277.33 |
||
|
92144F
|
92144F
92144-1945-45 SPRING,SHOCKABSORBER, |
92144-1945-45 |
from US $272.98 |
||
