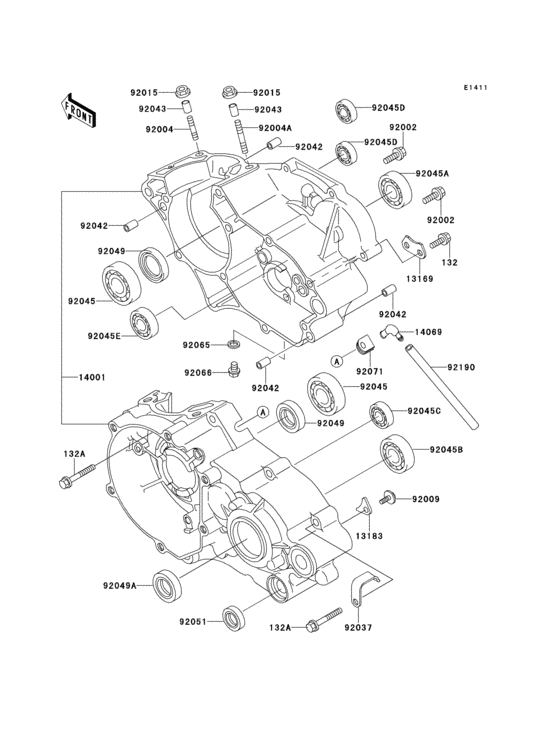

Crankcase Diagram Kawasaki KX80 KX80
- Year
- 2000
- Colour
- Lime Green (7F)
- Model code
- KX80-W3
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
132A
|
132A
132G0635
BOLT-FLANGED-SMALL,6X
|
132G0635 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0635 BOLT-FLANGED-SMALL,6X35 |
132BA0635 |
from US $1.25 |
||
|
13169
|
13169
13169012 PLATE,CHANGE DRUM |
13169012 |
from US $11.72 |
||
|
13183
|
13183
13183-1182 PLATE |
13183-1182 |
from US $3.33 |
||
|
14001
|
14001
14001-1231 SET-CRANKCASE |
14001-1231 |
from US $455.06 |
||
| replacements | |||||
|
14001
|
14001
14001-1313 SET-CRANKCASE |
14001-1313 |
from US $495.88 |
||
|
14001
|
14001
92045-1450 BEARING-BALL,16101JRX |
92045-1450 |
from US $19.01 |
||
|
14069
|
14069
14069-002
Breather
|
14069-002 |
— | ||
| replacements | |||||
|
14069
|
14069
14069-1062 BREATHER |
14069-1062 |
from US $16.32 |
||
|
14069
|
14069
14069-1001 BREATHER |
14069-1001 |
US $21.40 |
||
|
92002
|
92002
92002-1659 BOLT |
92002-1659 |
from US $3.01 |
||
|
92004
|
92004
92004-1252 STUD,8X28.5 |
92004-1252 |
from US $2.69 |
||
|
92004A
|
92004A
92004-1254 STUD,8X37 |
92004-1254 |
from US $1.74 |
||
|
92009
|
92009
92009-1563 SCREW,6X10 |
92009-1563 |
from US $2.69 |
||
|
92015
|
92015
92015-1143 NUT-8MM |
92015-1143 |
from US $0.99 |
||
|
92037
|
92037
92037-1318 CLAMP,HARNESS |
92037-1318 |
from US $4.12 |
||
|
92042
|
92042
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14 |
92043-1264 |
from US $1 |
||
|
92045
|
92045
92045-1059 BEARING-BALL,R-6304C3 |
92045-1059 |
from US $21.38 |
||
|
92045A
|
92045A
92045-1118 BEARING-BALL,6004TMB |
92045-1118 |
from US $19.01 |
||
|
92045B
|
92045B
92045-1226 BEARING-BALL,6204 |
92045-1226 |
from US $20.12 |
||
|
92045C
|
92045C
92045-1235 BEARING-BALL (12X28X8) |
92045-1235 |
from US $16.42 |
||
|
92045D
|
92045D
92045-1304 BEARING-BALL |
92045-1304 |
from US $12.21 |
||
|
92045E
|
92045E
92045-1360 BEARING-BALL |
92045-1360 |
from US $17.63 |
||
|
92049
|
92049
92049-1188 SEAL-OIL,SD20407GS |
92049-1188 |
from US $11.56 |
||
|
92049A
|
92049A
92049-1292 SEAL-OIL,TC25375 |
92049-1292 |
from US $6.81 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-1241 DRAIN PLUG |
92066-1241 |
from US $3.96 |
||
|
92071
|
92071
92071-042 GROMMET |
92071-042 |
from US $2.85 |
||
|
92190
|
92190
92190-1116 TUBE |
92190-1116 |
from US $6.97 |
||
| replacement | |||||
|
92190
|
92190
92059-1868 TUBE |
92059-1868 |
from US $7.29 |
||
