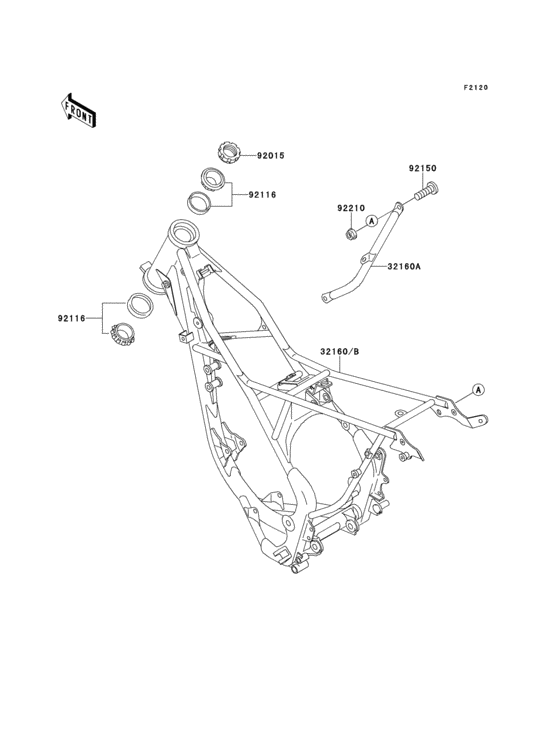

Frame Diagram Kawasaki KX80 KX80
- Year
- 2000
- Colour
- Lime Green (7F)
- Model code
- KX80-W3
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32160A
|
32160A
32160-1486-CC FRAME-COMP,DOWNTUBE,R |
32160-1486-CC |
from US $128.66 |
||
|
32160B
|
32160B
32160-1536-CC FRAME-COMP,MAIN |
32160-1536-CC |
from US $879.91 |
||
|
92015
|
92015
92015-1684 NUT,STEERING STEM,25M |
92015-1684 |
from US $13.31 |
||
|
92116
|
92116
92116-1065 BEARING-ROLLER,H1-CAP |
92116-1065 |
from US $21.35 |
||
|
92150
|
92150
92150-1221 BOLT,SOCKET,10X23 |
92150-1221 |
from US $3.17 |
||
|
92210
|
92210
92210-1080 NUT |
92210-1080 |
from US $6.49 |
