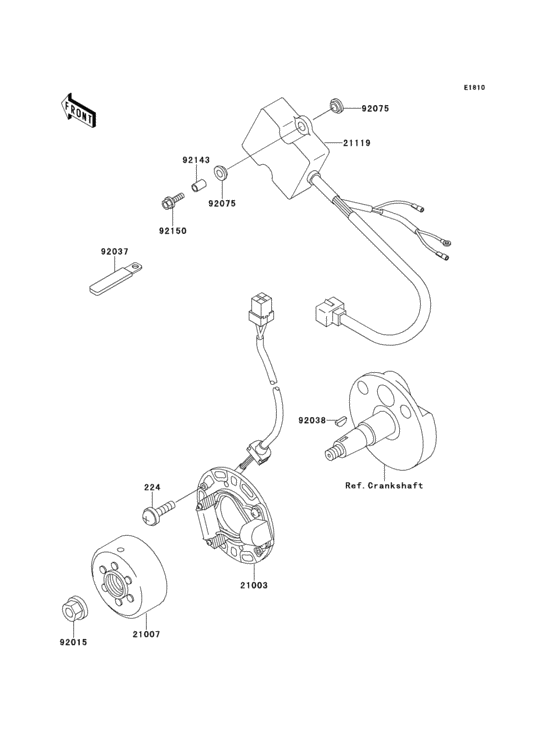

Generator Diagram Kawasaki KX80 KX80
- Year
- 2000
- Colour
- Lime Green (7F)
- Model code
- KX80-W3
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
224
|
224
224B0614 SCREW,6X14 |
224B0614 |
US $42.70 |
||
| replacements | |||||
|
224
|
224
92009-1333 SCREW,6X14 |
92009-1333 |
US $3.02 |
||
|
224
|
224
224AA0614 SCREW,6X14 |
224AA0614 |
from US $3.17 |
||
|
21003
|
21003
21003-1317
STATOR
|
21003-1317 |
— | ||
|
21007
|
21007
21007-1239 ROTOR,MAGNETO |
21007-1239 |
from US $339.77 |
||
|
21119
|
21119
21119-1498 IGNITER |
21119-1498 |
from US $236.68 |
||
|
92015
|
92015
92015-077
NUT,10MM
|
92015-077 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1415 NUT,10MM |
92015-1415 |
from US $3.54 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92038
|
92038
92038-001 WOODRUFF KEY |
92038-001 |
from US $3.73 |
||
|
92075
|
92075
92075-1138 DAMPER,PILOT LAMP |
92075-1138 |
from US $2.69 |
||
|
92143
|
92143
92143-3715 COLLAR,6X8.5X13 |
92143-3715 |
from US $5.86 |
||
|
92150
|
92150
92150-1339
BOLT
|
92150-1339 |
— | ||
| replacement | |||||
|
92150
|
92150
92150-1892 BOLT |
92150-1892 |
from US $3.90 |
||
