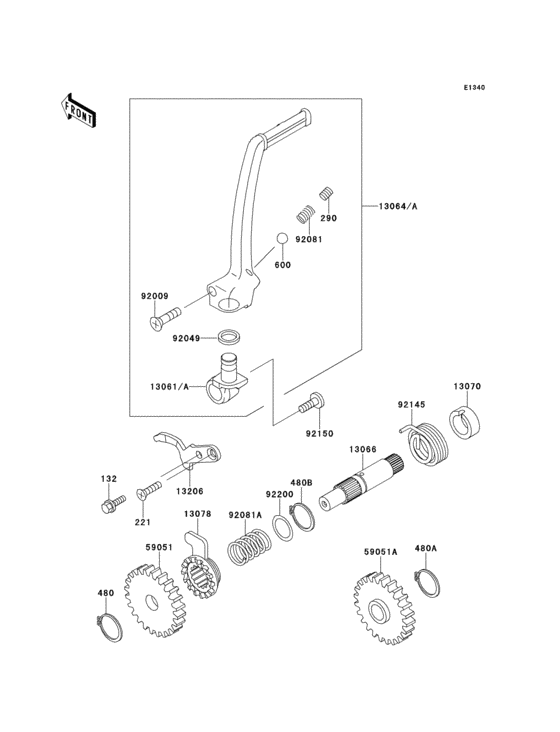

Kickstarter mechanism Diagram Kawasaki KX80 KX80
- Year
- 2000
- Colour
- Lime Green (7F)
- Model code
- KX80-W3
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0616
BOLT-FLANGED-SMALL,6X
|
132G0616 |
— | ||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
221
|
221
221B0618
SCREW,6X18
|
221B0618 |
— | ||
| replacement | |||||
|
221
|
221
221AA0618 SCREW,6X18 |
221AA0618 |
from US $0.95 |
||
|
290
|
290
290P0808 SCREW-SET-SOCKET,8X8 |
290P0808 |
from US $2.22 |
||
| replacement | |||||
|
290
|
290
290CA0808 SCREW-SET-SOCKET,8X8 |
290CA0808 |
from US $1.43 |
||
|
480
|
480
480J1200 CIRCLIP 12MM |
480J1200 |
from US $0.82 |
||
|
480A
|
480A
480J1500 CIRCLIP 15MM |
480J1500 |
from US $1.11 |
||
|
480B
|
480B
480J1600 CIRCLIP 16MM |
480J1600 |
from US $1.43 |
||
|
600
|
600
600A0800 BALL,6.35MM |
600A0800 |
from US $0.91 |
||
|
13061A
|
13061A
13061-1712 BOSS,KICK PEDAL |
13061-1712 |
from US $24.38 |
||
|
13064A
|
13064A
13064-1188 Lever-assy-kick,pedal |
13064-1188 |
from US $85.34 |
||
| replacements | |||||
|
13064A
|
13064A
13064-0073 LEVER-ASSY-KICK,PEDAL |
13064-0073 |
from US $82.13 |
||
|
13064A
|
13064A
13064-0081 Lever-Assy-Kick,Pedal |
13064-0081 |
from US $86.96 |
||
|
13066
|
13066
13066-1097 SHAFT-KICK |
13066-1097 |
from US $56.40 |
||
|
13070
|
13070
13070-1314 GUIDE |
13070-1314 |
from US $3.96 |
||
|
13078
|
13078
13078-1004 RATCHET |
13078-1004 |
from US $39.64 |
||
|
13206
|
13206
13206-1066 GUIDE-KICK |
13206-1066 |
from US $5.54 |
||
|
59051
|
59051
59051-1026 GEAR,KICK,32T |
59051-1026 |
from US $34.86 |
||
|
59051A
|
59051A
59051-1147 GEAR-SPUR,31T |
59051-1147 |
from US $42.34 |
||
|
92009
|
92009
92009-1607 SCREW,6X27 |
92009-1607 |
from US $5.39 |
||
|
92049
|
92049
92049-1468 SEAL-OIL,SR12162.5 |
92049-1468 |
from US $3.48 |
||
|
92081
|
92081
92081-020 SPRING, KICK PEDAL |
92081-020 |
from US $2.85 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHET |
92081-122 |
from US $5.70 |
||
|
92145
|
92145
92145-1058 SPRING |
92145-1058 |
from US $9.03 |
||
|
92150
|
92150
92150-1673 BOLT |
92150-1673 |
from US $6.97 |
||
| replacement | |||||
|
92150
|
92150
92150-1737 BOLT |
92150-1737 |
from US $7.29 |
||
|
92200
|
92200
92200-1209 WASHER |
92200-1209 |
from US $3.48 |
||
