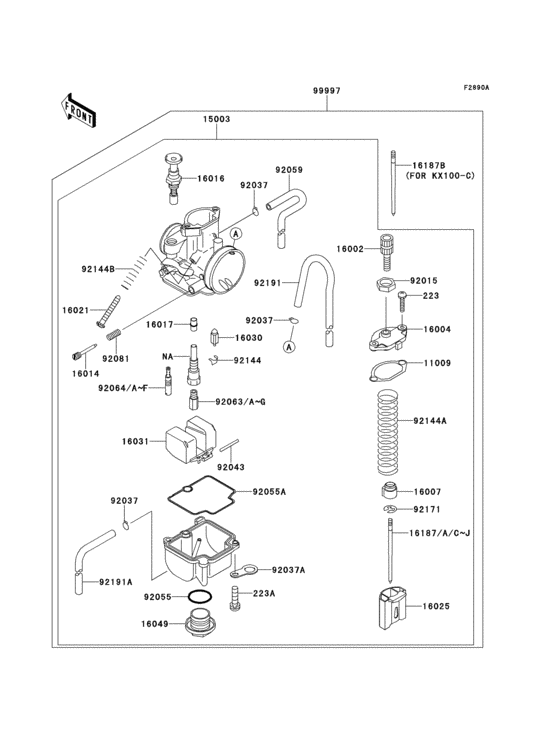

Optional parts(1/2)(carburetor) Diagram Kawasaki KX80 KX80
- Year
- 2000
- Colour
- Lime Green (7F)
- Model code
- KX80-W3
- Sales region
- Canada
- Engine Capacity
- 80
- Model
- KX80-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223C0414 SCREW-PAN-WS-CROS |
223C0414 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AB0414 SCREW-PAN-WS-CROS |
223AB0414 |
from US $0.95 |
||
|
223A
|
223A
223C0416
SCREW-PAN-WS-CROS
|
223C0416 |
— | ||
| replacement | |||||
|
223A
|
223A
223AB0416 SCREW-PAN-WS-CROS |
223AB0416 |
from US $0.95 |
||
|
11009
|
11009
11009-1759 GASKET,MIXING CHAMBER |
11009-1759 |
from US $8.71 |
||
|
15003
|
15003
15003-1616 CARBURETOR-ASSY |
15003-1616 |
US $148.43 |
||
|
16002
|
16002
16002-1056 ADJUSTER-CABLE |
16002-1056 |
from US $16.79 |
||
|
16004
|
16004
16004-1065 CAP-CHAMBER,MIXING |
16004-1065 |
from US $56.40 |
||
|
16007
|
16007
16007-1155 SEAT-SPRING,THROTTLE |
16007-1155 |
from US $6.34 |
||
|
16014
|
16014
16014-1058 SCREW-PILOT AIR |
16014-1058 |
from US $18.06 |
||
|
16016
|
16016
16016-1075 PLUNGER |
16016-1075 |
from US $27.38 |
||
|
16017
|
16017
16017-1423 JET-NEEDLE |
16017-1423 |
US $34.25 |
||
|
16021
|
16021
16021-1161 SCREW-THROTTLE STOP |
16021-1161 |
from US $13.62 |
||
|
16025
|
16025
16025-1220 VALVE-THROTTLE,CA3.5 |
16025-1220 |
from US $113.10 |
||
|
16030
|
16030
16030-1064 VALVE-FLOAT |
16030-1064 |
from US $34.26 |
||
|
16031
|
16031
16031-1065 FLOAT |
16031-1065 |
from US $36.20 |
||
|
16049
|
16049
16049-1051 COVER-MAIN JET |
16049-1051 |
from US $21.39 |
||
|
16187
|
16187
16187-1144 NEEDLE-JET,NADA 2.355 |
16187-1144 |
US $25.40 |
||
|
16187A
|
16187A
16187-1145 NEEDLE-JET,NADB 2.365 |
16187-1145 |
US $27.18 |
||
|
16187B
|
16187B
16187-1146 NEEDLE-JET,NADC 2.375 |
16187-1146 |
US $27.18 |
||
|
16187C
|
16187C
16187-1147 NEEDLE-JET,NADD 2.385 |
16187-1147 |
US $27.18 |
||
|
16187D
|
16187D
16187-1148 NEEDLE-JET,NADE 2.395 |
16187-1148 |
US $27.18 |
||
|
16187E
|
16187E
16187-1149 NEEDLE-JET,NAEA 2.355 |
16187-1149 |
US $25.40 |
||
|
16187F
|
16187F
16187-1150 NEEDLE-JET,NAEB 2.365 |
16187-1150 |
US $27.18 |
||
|
16187G
|
16187G
16187-1151 NEEDLE-JET,NAEC 2.375 |
16187-1151 |
US $25.61 |
||
|
16187H
|
16187H
16187-1151 NEEDLE-JET,NAEC 2.375 |
16187-1151 |
US $25.61 |
||
|
16187I
|
16187I
16187-1152 NEEDLE-JET,NAED 2.385 |
16187-1152 |
US $27.18 |
||
|
16187J
|
16187J
16187-1153 NEEDLE-JET,NAEE 2.395 |
16187-1153 |
US $27.18 |
||
|
92015
|
92015
92015-1574 NUT,CABLE ADJUST LOCK |
92015-1574 |
from US $3.80 |
||
|
92037
|
92037
92037-1396 CLAMP,TUBE |
92037-1396 |
from US $3.33 |
||
|
92037A
|
92037A
92037-1969 CLAMP,HOSE |
92037-1969 |
from US $5.39 |
||
|
92043
|
92043
92043-1207
PIN,FLOAT
|
92043-1207 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-1148 PIN,FLOAT |
92043-1148 |
from US $4.20 |
||
|
92055
|
92055
92055-1167 RING-O,MAIN JET COVER |
92055-1167 |
from US $7.27 |
||
|
92055A
|
92055A
92055-1389 RING-O,FLOAT CHAMBER |
92055-1389 |
from US $7.62 |
||
|
92059
|
92059
92059-1941
TUBE,4X7X480
|
92059-1941 |
— | ||
| replacement | |||||
|
92059
|
92059
92059-1898 TUBE,4X7X480 |
92059-1898 |
from US $11.09 |
||
|
92063
|
92063
92063-1336 JET-MAIN,#130 |
92063-1336 |
from US $10.61 |
||
|
92063A
|
92063A
92063-1337 JET-MAIN,#132 |
92063-1337 |
from US $9.66 |
||
|
92063B
|
92063B
92063-1338 JET-MAIN,#135 |
92063-1338 |
from US $9.03 |
||
|
92063C
|
92063C
92063-1359 JET-MAIN,#138 |
92063-1359 |
from US $9.03 |
||
|
92063D
|
92063D
92063-1360 JET-MAIN,#140 |
92063-1360 |
from US $9.03 |
||
|
92063E
|
92063E
92063-1361 JET-MAIN,#142 |
92063-1361 |
from US $8.71 |
||
|
92063F
|
92063F
92063-1362 JET-MAIN,#145 |
92063-1362 |
from US $10.45 |
||
|
92063G
|
92063G
92063-1363 JET-MAIN,#148 |
92063-1363 |
from US $8.71 |
||
|
92064
|
92064
92064-1130 JET-PILOT,#52 |
92064-1130 |
from US $11.88 |
||
|
92064A
|
92064A
92064-1139 JET-PILOT,#38 |
92064-1139 |
from US $10.45 |
||
|
92064B
|
92064B
92064-1140 JET-PILOT,#40 |
92064-1140 |
from US $10.45 |
||
|
92064C
|
92064C
92064-1141 JET-PILOT,#42 |
92064-1141 |
from US $10.45 |
||
|
92064D
|
92064D
92064-1142 JET-PILOT |
92064-1142 |
from US $12.57 |
||
|
92064E
|
92064E
92064-1143 JET-PILOT,#48 |
92064-1143 |
from US $12.57 |
||
|
92064F
|
92064F
92064-1144 JET-PILOT |
92064-1144 |
from US $11.25 |
||
|
92081
|
92081
92081-1555 SPRING,ADJUST SCREW |
92081-1555 |
from US $4.09 |
||
|
92144
|
92144
92144-1178 SPRING,FLOAT |
92144-1178 |
from US $5.23 |
||
|
92144A
|
92144A
92144-1566 SPRING,THROTTLE VALVE |
92144-1566 |
from US $9.66 |
||
|
92144B
|
92144B
92144-1782 SPRING,THROTTLE STOP |
92144-1782 |
from US $10.77 |
||
|
92171
|
92171
92171-1323 CLAMP |
92171-1323 |
from US $8.08 |
||
|
92191
|
92191
92191-1243 TUBE,4X7X560 |
92191-1243 |
from US $6.65 |
||
|
92191A
|
92191A
92191-1591 TUBE,4X7X420 |
92191-1591 |
from US $11.09 |
||
|
99997
|
99997
99997-1095 KIT-CARBURETOR |
99997-1095 |
US $498.20 |
||
