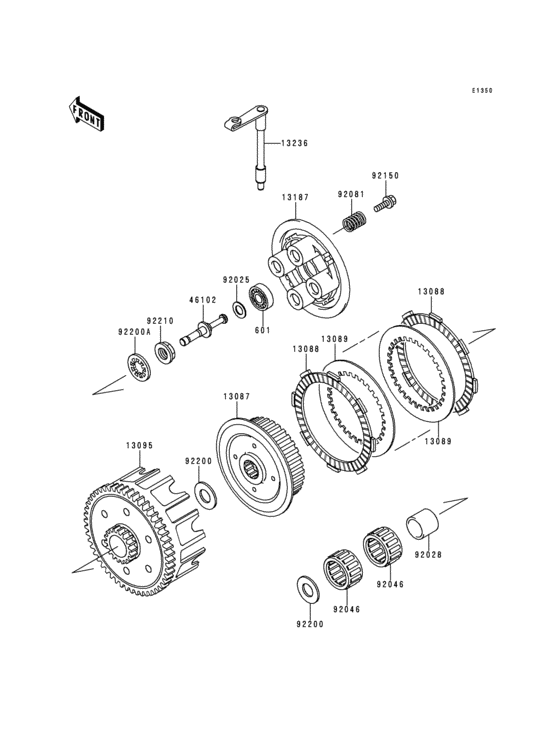

Clutch Diagram Kawasaki KX80 KX80-II
- Year
- 1999
- Model code
- KX80-X2
- Sales region
- Europe
- Engine Capacity
- 80
- Model
- KX80-X (KX80-II)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601A6001 BEARING-BALL |
601A6001 |
from US $9.75 |
||
|
13087
|
13087
13087-1170 Hub-clutch |
13087-1170 |
from US $42.34 |
||
|
13088
|
13088
13088-1016 PLATE-FRICTION |
13088-1016 |
from US $14.26 |
||
|
13089
|
13089
13089-1120 PLATE-CLUTCH |
13089-1120 |
from US $7.92 |
||
|
13095
|
13095
13095-1406 HOUSING-COMP-CLUTCH |
13095-1406 |
from US $171.34 |
||
|
13187
|
13187
13187-1013 PLATE-CLUTCH OPERATIN |
13187-1013 |
from US $30.52 |
||
|
13236
|
13236
13236-1298 LEVER-COMP,RELEASE |
13236-1298 |
from US $20.94 |
||
|
46102
|
46102
46102-1409 ROD,CLUTCH RELEASE |
46102-1409 |
from US $13.94 |
||
|
92025
|
92025
92025-1780 SHIM |
92025-1780 |
from US $1.58 |
||
|
92028
|
92028
92028-1811 BUSHING,20X25X21.1 |
92028-1811 |
from US $10.77 |
||
|
92046
|
92046
92046-1254 BERNG,NEDL,KT252910EG |
92046-1254 |
from US $12.73 |
||
|
92081
|
92081
92081-1492 SPRING,CLUTCH |
92081-1492 |
from US $5.07 |
||
|
92150
|
92150
92150-1715 BOLT |
92150-1715 |
from US $2.38 |
||
|
92200
|
92200
92200-1351 WASHER,20.3X33X2.0 |
92200-1351 |
from US $1.43 |
||
|
92200A
|
92200A
92200-1352 WASHER |
92200-1352 |
from US $2.38 |
||
|
92210
|
92210
92210-1113 NUT,16MM |
92210-1113 |
from US $9.50 |
