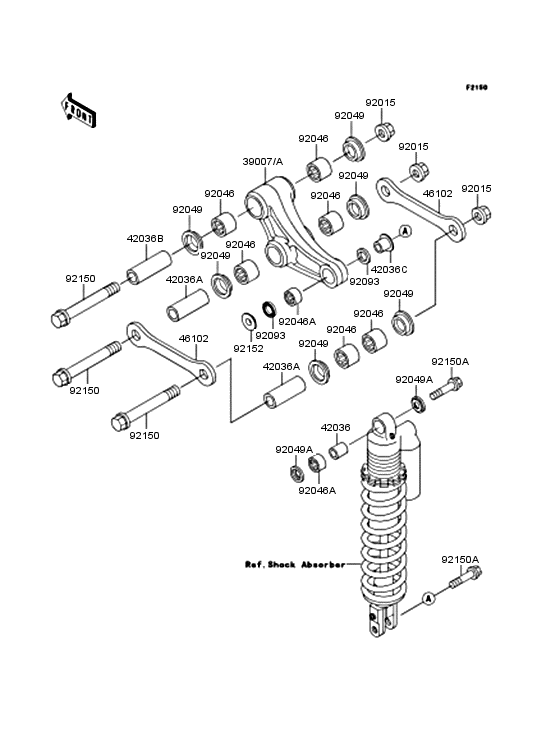

Rear suspension Diagram Kawasaki KX80 KX80-II
- Year
- 2000
- Colour
- Lime Green (7F)
- Model code
- KX80-X3
- Sales region
- Japan
- Engine Capacity
- 80
- Frame
- KX080X 008001 -
- Engine
- KX080XE 000001 -
- Model
- KX80-X (KX80-II)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39007
|
39007
39007-1261 ARM-SUSP,UNI TRAKア-ム(サスプ)，ユニ トラツク |
39007-1261 |
from US $117.44 |
||
|
39007A
|
39007A
39007-1262 ARM-SUSP,UNI TRAKア-ム(サスプ)，ユニ トラツク |
39007-1262 |
from US $117.44 |
||
|
42036
|
42036
42036-1248 SLEEVE,10X16X19スリ-ブ |
42036-1248 |
from US $7.29 |
||
|
42036A
|
42036A
42036-1273 SLEEVE,12X18X57スリ-ブ，12X18X57 |
42036-1273 |
from US $12.51 |
||
|
42036B
|
42036B
42036-1274 SLEEVE,12X18X49スリ-ブ，12X19X49 |
42036-1274 |
from US $10.45 |
||
|
42036C
|
42036C
42036-1351 SLEEVEスリ-ブ |
42036-1351 |
from US $7.92 |
||
|
46102
|
46102
46102-1291 ROD,SUSPENSIONロツド，サスペンシヨン |
46102-1291 |
from US $15.68 |
||
|
92015
|
92015
92015-1433 NUT,12MMナツト，フランジ，12MM |
92015-1433 |
from US $5.54 |
||
|
92046
|
92046
92046-1144 BEARING-NEEDLE,18BM24ベアリング(ニ-ドル)，18BM2416 |
92046-1144 |
from US $22.29 |
||
|
92046A
|
92046A
92046-1192 BEARING-NEEDLE,16BM22ベアリング(ニ-ドル) |
92046-1192 |
from US $15.36 |
||
|
92049
|
92049
92049-1328 SEAL-OILシ-ル(オイル) |
92049-1328 |
from US $19.17 |
||
|
92049A
|
92049A
92049-1330 SEAL-OILシ-ル(オイル) |
92049-1330 |
from US $8.08 |
||
| replacement | |||||
|
92049A
|
92049A
92049-0069 SEAL-OILシ-ル(オイル) |
92049-0069 |
from US $6.81 |
||
|
92093
|
92093
92093-1436 SEAL (15.2x2.2x2.5)シ-ル |
92093-1436 |
from US $4.75 |
||
|
92150
|
92150
92150-1412 BOLT,FLANGED,12X83ボルト，フランジ，12X83 |
92150-1412 |
from US $7.60 |
||
|
92150A
|
92150A
92150-1711 BOLTボルト，フランジ，10X40 |
92150-1711 |
from US $7.60 |
||
|
92152
|
92152
92152-1139 COLLARカラ- |
92152-1139 |
from US $5.54 |
||
