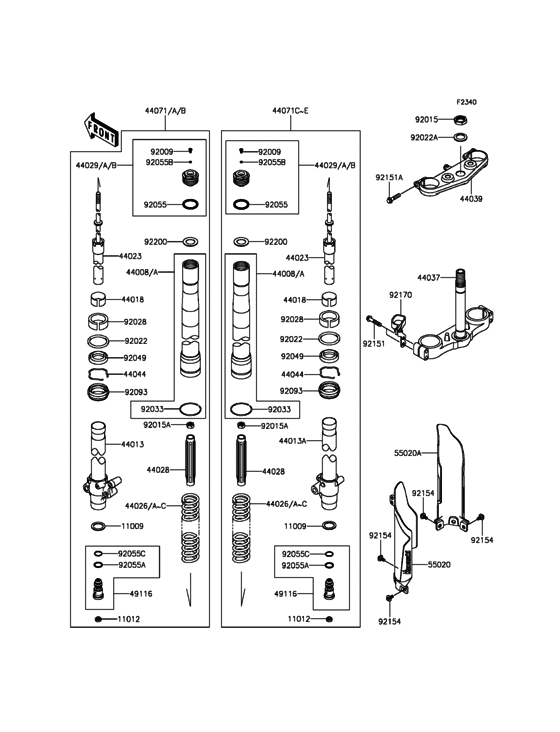

Front Fork Diagram Kawasaki KX85 KX85-II
- Year
- 2015
- Model code
- KX85DFF
- Sales region
- Australia
- Engine Capacity
- 85
- Model
- KX85-II Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1592 GASKET,FORK CYLINDER |
11009-1592 |
from US $4.59 |
||
|
11012
|
11012
11012-1692 CAP |
11012-1692 |
from US $4.59 |
||
|
44008A
|
44008A
44008-0068-KX PIPE-FORK OUTER,SILVE |
44008-0068-KX |
from US $315.08 |
||
|
44013
|
44013
44013-0215 PIPE-FORK INNER,LHLH; フオ-クインナ |
44013-0215 |
from US $236.68 |
||
|
44013A
|
44013A
44013-0216 PIPE-FORK INNER,RHRH; フオ-クインナ |
44013-0216 |
from US $236.68 |
||
|
44018
|
44018
44018-1058 PISTON-FORK |
44018-1058 |
from US $15.36 |
||
|
44023
|
44023
44023-0113 CYLINDER-SET-FORKフオ-ク |
44023-0113 |
from US $258.46 |
||
|
44026
|
44026
44026-1633 SPRING-FRONT FORK |
44026-1633 |
from US $41.29 |
||
|
44026A
|
44026A
44026-1634 SPRING-FRONT FORK |
44026-1634 |
from US $41.29 |
||
|
44026B
|
44026B
44026-1635 SPRING-FRONT FORK |
44026-1635 |
from US $41.29 |
||
|
44026C
|
44026C
44026-1671 SPRING-FRONT FORK,K=0 |
44026-1671 |
from US $41.29 |
||
|
44028
|
44028
44028-1090 GUIDE-FORK SPRING |
44028-1090 |
from US $27.83 |
||
|
44029
|
44029
44029-0017-48W SEAT-FORK SPRING,G.B. |
44029-0017-48W |
from US $46.97 |
||
|
44037
|
44037
44037-0139-21 HOLDER-FORK UNDER,F.Bブラツク; フオ-クアンダ |
44037-0139-21 |
from US $211.99 |
||
|
44039
|
44039
44039-0128-21 HOLDER-FORK UPPER,F.Bブラツク; フオ-クアツパ |
44039-0128-21 |
from US $98.44 |
||
|
44044
|
44044
92033-1100 RING-SNAP,FORK OIL |
92033-1100 |
from US $7.46 |
||
|
44071A
|
44071A
44071-0882-50A DAMPER-ASSY,FORK,LH,S |
44071-0882-50A |
from US $768.11 |
||
|
44071D
|
44071D
44071-0883-50A DAMPER-ASSY,FORK,RH,S |
44071-0883-50A |
from US $768.11 |
||
|
49116
|
49116
49116-0038 VALVE-ASSY,BASEベース |
49116-0038 |
from US $99.04 |
||
|
55020
|
55020
55020-0896-6D GUARD,FORK,LH,BLACKフオーク，LH，ブラツク |
55020-0896-6D |
from US $17.42 |
||
|
55020A
|
55020A
55020-0897-6D GUARD,FORK,RH,BLACKフオーク，RH，ブラツク |
55020-0897-6D |
from US $17.42 |
||
|
92009
|
92009
92009-1568 SCREW |
92009-1568 |
from US $3.96 |
||
|
92015
|
92015
92015-1653
NUT,STEERING STEM,22M
|
92015-1653 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-1521 NUT,STEERING STEM,22M |
92210-1521 |
from US $10.30 |
||
|
92015A
|
92015A
92015-1839 NUT |
92015-1839 |
from US $12.20 |
||
|
92022
|
92022
92022-1275 WASHER |
92022-1275 |
from US $3.96 |
||
|
92022A
|
92022A
92022-1873 WASHER |
92022-1873 |
from US $4.75 |
||
|
92028
|
92028
92028-1656 BUSHING |
92028-1656 |
from US $10.61 |
||
|
92033
|
92033
92033-0737 RING-SNAPスナツプ |
92033-0737 |
from US $5.23 |
||
|
92049
|
92049
92049-1394 SEAL-OIL,FORK OUTER T |
92049-1394 |
from US $12.51 |
||
|
92055
|
92055
92055-1123 RING-O |
92055-1123 |
from US $3.48 |
||
|
92055A
|
92055A
670B2018 0 RING,18MM |
670B2018 |
from US $3.20 |
||
|
92055B
|
92055B
670B1503 O RING,3MM |
670B1503 |
from US $2.85 |
||
|
92055C
|
92055C
92055-1502 RING-O,FORK VALVE |
92055-1502 |
from US $4.75 |
||
|
92093
|
92093
92093-1426 SEAL,FORK OUTER TUBE |
92093-1426 |
from US $14.57 |
||
|
92151
|
92151
132BA0840 BOLT-FLANGED-SMALL |
132BA0840 |
from US $1.27 |
||
|
92151A
|
92151A
92150-1585 BOLT,8X35 |
92150-1585 |
US $3.67 |
||
| replacement | |||||
|
92151A
|
92151A
132BA0835 BOLT,8X35 |
132BA0835 |
from US $3.01 |
||
|
92154
|
92154
92154-0546 BOLT,FLANGED,6X9 |
92154-0546 |
from US $1.74 |
||
|
92170
|
92170
92170-1810 Clamp |
92170-1810 |
from US $5.86 |
||
|
92200
|
92200
92200-1655 WASHER |
92200-1655 |
from US $3.01 |
||
