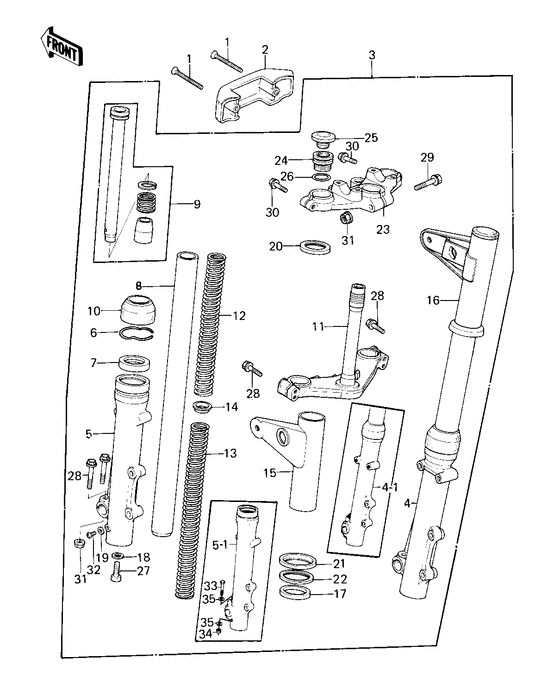

Front fork Diagram Kawasaki KZ1000 Shaft
- Year
- 1980
- Model code
- KZ1000-E2
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- KZ1000 Shaft
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
222E0555A SCREW,OVL CNTSK,5X55Screw,ovl cntsk,5x55; |
222E0555A |
US $3.11 |
||
|
2
|
2
44033-1029
COVER,FORK
Cover,fork; |
44033-1029 |
— | ||
|
3
|
3
44001-1222 FORK-FRONTKz1000-e1, kz1000-e2 |
44001-1222 |
US $1,632.62 |
||
|
4
|
4
44006-1024 TUBE,RH,FORK OUTERTube,rh,fork outer; Kz1000-e1 |
44006-1024 |
US $284.83 |
||
|
5
|
5
44005-1024 TUBE,LH,FORK OUTERTube,lh,fork outer; Kz1000-e1 |
44005-1024 |
US $267.05 |
||
|
6
|
6
92033-1036 CIRCLIPCirclip; |
92033-1036 |
from US $3.80 |
||
|
7
|
7
92049-1251 SEAL-OIL,FORKSeal-oil,fork; Kz1000-e1 |
92049-1251 |
from US $23.59 |
||
|
8
|
8
44013-1021
TUBE,FORK INNER
Tube,fork inner; Kz1000-e1, kz1000-e2 |
44013-1021 |
— | ||
|
9
|
9
44022-1023
CYLINDER-FORK
|
44022-1023 |
— | ||
|
10
|
10
92093-1024 DUST SHIELD,FORKDust shield,fork; |
92093-1024 |
US $24.68 |
||
|
11
|
11
44037-1019 STEM,STEERINGStem,steering; |
44037-1019 |
US $508.36 |
||
|
12
|
12
44026-1031 SPRING,FORK,UPPERSpring,fork,upper; L=208m/m |
44026-1031 |
US $18.92 |
||
|
13
|
13
44026-1032 SPRING,FORK,LOWERSpring,fork,lower; L=386.5m/m |
44026-1032 |
US $27.40 |
||
|
14
|
14
44028033 GUIDE,FORK SPRINGGuide,fork spring; |
44028033 |
US $7.15 |
||
|
15
|
15
44033-1045 COVER,L.H,FORKCover,l.h,fork; Kz1000-e1, kz1000-e2 |
44033-1045 |
US $126.47 |
||
|
16
|
16
44033-1046 COVER,R.H,FORKCover,r.h,fork; Kz1000-e1, kz1000-e2 |
44033-1046 |
US $145.46 |
||
|
17
|
17
92075-1156 DAMPER,FORK COVERDamper,fork cover; |
92075-1156 |
US $1.62 |
||
|
18
|
18
11009-1127 GASKET,FORK CYLINDERGasket,fork cylinder; |
11009-1127 |
from US $3.80 |
||
|
19
|
19
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
20
|
20
13169-1152 GUIDE,FORK COVER,UPPEGuide,fork cover,uppe; |
13169-1152 |
US $10.22 |
||
|
21
|
21
13169-1153
GUIDE,FORK COVER,LOWE
Guide,fork cover,lowe; |
13169-1153 |
— | ||
|
22
|
22
13169-1155 GUIDE,FORK COVER,DMPEGuide,fork cover,dmpe; |
13169-1155 |
US $8.30 |
||
|
23
|
23
44039-1015 HEAD,STEERING STEMHead,steering stem; |
44039-1015 |
US $268.92 |
||
|
24
|
24
44029-1010
BOLT,FORK TOP
Bolt,fork top; |
44029-1010 |
— | ||
|
25
|
25
11012-1018 CAP,RUBBERCap,rubber; |
11012-1018 |
from US $10.45 |
||
|
26
|
26
92055-1052
0 RING,FORK TOP
"0" ring,fork top; |
92055-1052 |
— | ||
|
27
|
27
92001-1186 BOLT,FORK CYLINDERBolt,fork cylinder; 12 x 25 |
92001-1186 |
US $2.66 |
||
|
28
|
28
92001-1188
BOLT,8X40
Bolt,8x40; Kz1000-e1, kz1000-e2 |
92001-1188 |
— | ||
|
29
|
29
92001-1060 BOLT,HEX HEAD,8X53Bolt,hex head,8x53; |
92001-1060 |
US $2.70 |
||
| replacement | |||||
|
29
|
29
92001-1141 BOLT,HEX HEAD,8X57Bolt,hex head,8x53; |
92001-1141 |
US $2.70 |
||
|
30
|
30
92001-1189
BOLT,10X45
Bolt,10x45; |
92001-1189 |
— | ||
|
31
|
31
44007-1002 NUT,8M/MNut,8m/m; Kz1000-e1, kz1000-e2 |
44007-1002 |
US $3.11 |
||
|
32
|
32
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
32
|
32
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
33
|
33
114G0855 BOLT-SMALL-UPSET,8X55Bolt,hex head,8x55; Kz1000-e2 |
114G0855 |
US $45.40 |
||
| replacements | |||||
|
33
|
33
115BA0855 BOLT-SMALL-UPSETBolt,hex head,8x55; Kz1000-e2 |
115BA0855 |
US $1.24 |
||
|
33
|
33
115G0855
BOLT-SMALL-UPSET,8X55
Bolt,hex head,8x55; Kz1000-e2 |
115G0855 |
— | ||
|
34
|
34
92015-1124 NUT,LOCK,8MMNut,lock,8mm; Kz1000-e2 |
92015-1124 |
from US $3.17 |
||
|
35
|
35
410B0800
WASHER-PLAIN-SMALL,8M
Washer plain 8mm; Kz1000-e2 |
410B0800 |
— | ||
| replacement | |||||
|
35
|
35
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; Kz1000-e2 |
410AA0800 |
from US $0.63 |
||
