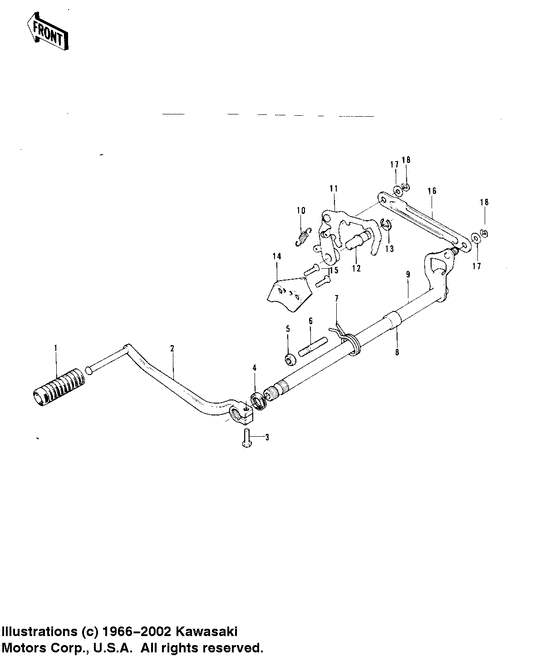

Gear change mechanism ('73-'75 f11/f11-a/f11-b) Diagram Kawasaki Model "F" F11
- Year
- 1973
- Model code
- F11
- Sales region
- USA
- Engine Capacity
- 250
- Model
- F11
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13157004 DAMPER,CHANGE PEDALRubber change pedal; |
13157004 |
US $3.48 |
||
| replacement | |||||
|
1
|
1
92161-1532 DAMPER,CHANGE PEDALRubber change pedal; |
92161-1532 |
from US $4.87 |
||
|
3
|
3
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
3
|
3
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
4
|
4
92049-1271 SEAL-OIL |
92049-1271 |
from US $8.15 |
||
|
5
|
5
312B0800
NUT-HEX-SMALL
|
312B0800 |
— | ||
| replacement | |||||
|
5
|
5
318AA0800 NUT-HEX-SMALL |
318AA0800 |
from US $0.92 |
||
|
6
|
6
92001-1401
BOLT,EXCLUSIVE MASS P
Bolt,return spring; |
92001-1401 |
— | ||
| replacement | |||||
|
6
|
6
92001-1455 BOLT,EXCLUSIVE MASS PBolt,return spring; |
92001-1455 |
from US $2.85 |
||
|
7
|
7
92083-021
SPRING,CHG PEDL RTN
Spring,chg pedl rtn; |
92083-021 |
— | ||
|
8
|
8
92027-121 COLLAR,12X18X11.5 |
92027-121 |
US $10.22 |
||
| replacement | |||||
|
8
|
8
92152-0582 COLLAR,12X18X11.5 |
92152-0582 |
from US $4.05 |
||
|
9
|
9
13172-002
SHAFT ASSY-CHNG PEDAL
|
13172-002 |
— | ||
|
1
|
1
13156-043 PEDAL GEAR CHANGE |
13156-043 |
US $74.81 |
||
|
2
|
2
13156-043 PEDAL GEAR CHANGE |
13156-043 |
US $74.81 |
||
|
10
|
10
92081-101 SPRING-CHANG LEVER |
92081-101 |
US $6.55 |
||
|
11
|
11
13161-027 LEVER ASSY GEAR CHNG |
13161-027 |
US $30.15 |
||
|
12
|
12
92043-077 PIN-CHANGE LEVER |
92043-077 |
US $4.16 |
||
|
13
|
13
482J8000 CIRCLIP 8MMCirclip 8mm; |
482J8000 |
from US $3 |
||
|
14
|
14
13169-008 PLATE-CHNG DRUM POTON |
13169-008 |
US $6.12 |
||
|
15
|
15
221B0614 SCREW-CSK-CROS,6X14Screw cntsnk hd 6x14; |
221B0614 |
from US $0.95 |
||
| replacement | |||||
|
15
|
15
221AA0614 SCREW-CSK-CROS,6X14Screw cntsnk hd 6x14; |
221AA0614 |
from US $0.94 |
||
|
16
|
16
13159-011 CONNECTOR |
13159-011 |
US $3.11 |
||
|
17
|
17
92022-201 WASHER-PLAIN |
92022-201 |
US $0.31 |
||
|
18
|
18
482J6000 CIRCLIP-TYPE-E,6MMCirclip 6mm; |
482J6000 |
from US $1.05 |
||
